Vehicle Info Needed

MOROSOPART NUMBER: 710-20502

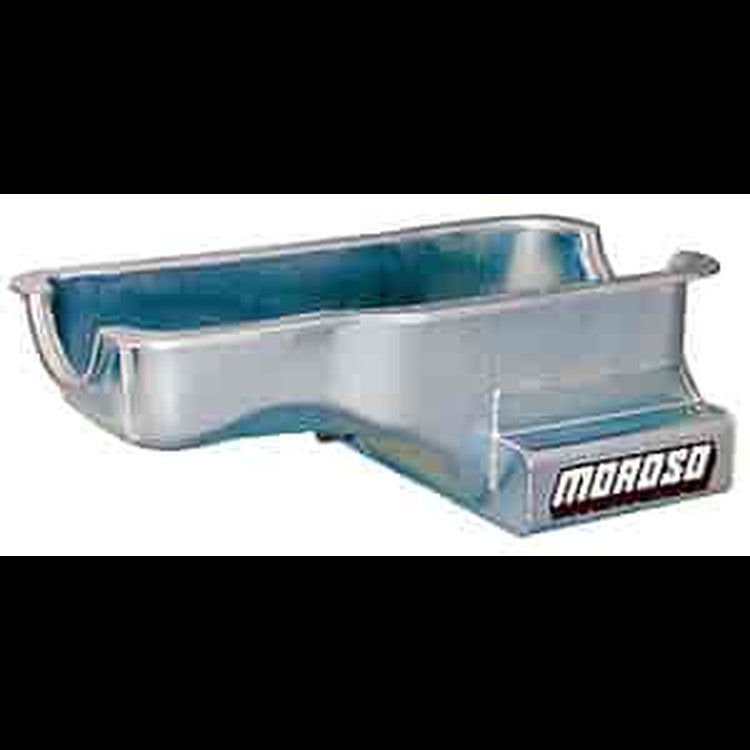

Street/Strip Oil Pan Ford 289-302

Name: Street/Strip Oil Pan Ford 289-302
Brand: MOROSO
SKU: 710-20502
Price: 391.99 USD
Availability: InStock

^$391⁹⁹

1 left in stock

Ships Today

Lowest Price Guarantee

Small Block Ford

Street/Strip Oil Pan

Ford 289-302

Kicked-Out Sump

Front Wet Sump 7-quart capacity

8" Depth

Clear Zinc finish

Fits Ford/Mercury vehicles with factory front sump pans
Oil retention baffle
Will clear 289-302 4-bolt center main caps
Will not clear 289-302 4-bolt front and rear main caps without modification
For use with 4-piece front sump gaskets
Compatible with most starter/flywheel combinations

Note: Oil pan capacities do not include oil filter capacity

Recommended Pickup:

710-24520 -- Fits Stock Oil Pump and Mellings 689-M68 or 689-M68HV

Part TypeOil Pan

BrandMOROSO

Package Height9.5

Package Width15.5

Package Length23.5

Weight15.75 PG

Part CategoryPerformance Parts

Oil Pan Capacity7 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledYes

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishClear zinc

Kickout PositionPassenger side

Oil Pan MaterialSteel

Maximum Stroke With Oe Rod3.5 in (88.9 mm)

Gaskets IncludedNo

Oil Pan Depth8 in (203.2 mm)

Sump LocationFront

Crank Scraper IncludedNo

Windage Tray IncludedNo

Part FitmentDirect Fit

Kicked OutYes

Stroker ClearancedYes

Vendor Part Number20502

Package Qty1

Package TypeEA
