20533 Road Race Oil Pan Ford 302
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20533

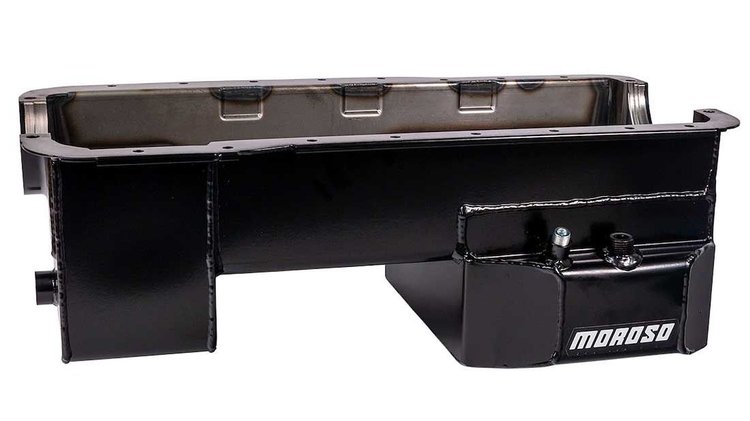

20533 Road Race Oil Pan Ford 302

$59599
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Industrial Nitrile Gloves [5.5 mils Thick, Medium]

JEGS

Industrial Nitrile Gloves [5.5 mils Thick, Medium]

Part Number : 555-1126
$1499$17.99
You Save$3.00
24529 Oil Pump Pickup for Small Block Ford Road Race Oil Pans

MOROSO

24529 Oil Pump Pickup for Small Block Ford Road Race Oil Pans

Part Number : 710-24529
$10099
Industrial Nitrile Gloves [5.5 mils Thick, Large]

JEGS

Industrial Nitrile Gloves [5.5 mils Thick, Large]

Part Number : 555-1127
$1599$17.99
You Save$2.00
Industrial Nitrile Gloves [5.5 mils Thick, X-Large]

JEGS

Industrial Nitrile Gloves [5.5 mils Thick, X-Large]

Part Number : 555-1128
$1599$17.99
You Save$2.00

Small Block Ford
    Road Race Oil Pan
  • Ford 302
  • 1979-Up Mustang
  • 1981-1988 Thunderbird/Cougar
  • 1979-1986 Capri
  • Wet Sump
  • Rear Sump 7-quart capacity

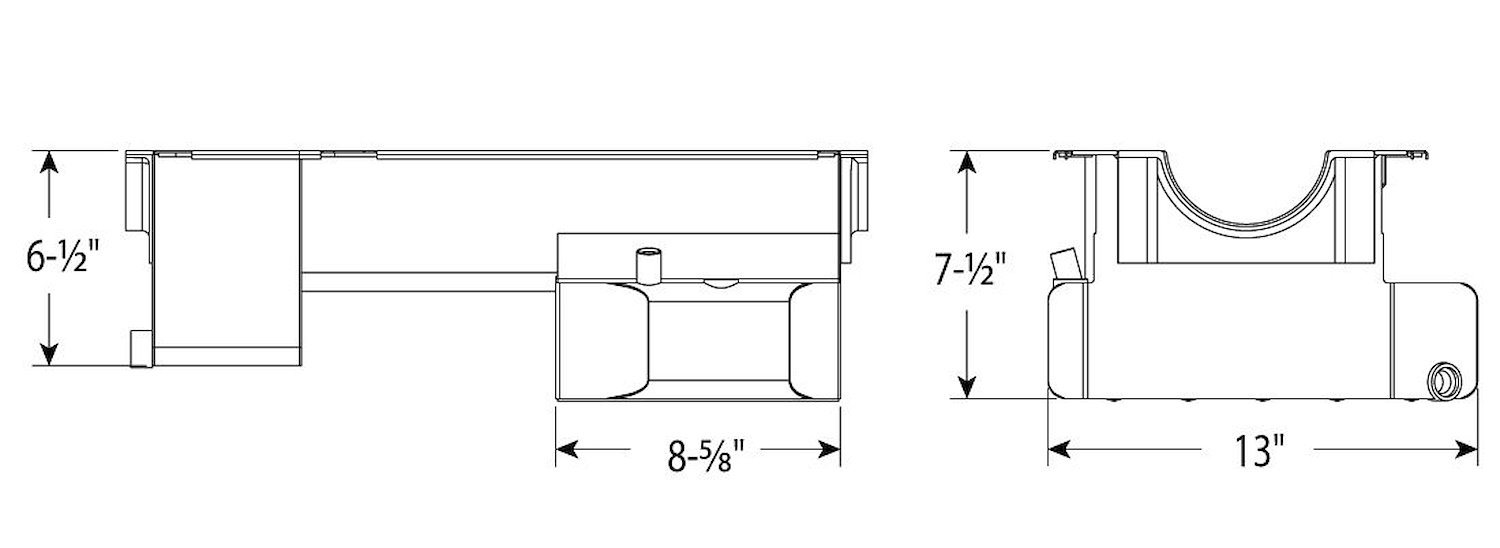

  • 7-1/2" Depth
  • Black Powder-Coated Finish

    Features:
  • Fits Ford vehicles that use factory rear sump pans
  • Oil pans have thick precision laser cut steel rails
  • Billet end seals for greater sealing than a core based oil pan
  • Clears all 4-bolt main caps including 4-bolt rear
  • 302 application accepts 3.40' stroke with most steel rods and 351W application accepts 4.0' stroke with most steel rods
  • Feature a race proven diamond shape four trap door assembly and antislosh baffle that keepsoil contained in the oil pump pick up area during hard acceleration, cornering and braking
  • Designed for Road Racing, makes an excellent Road Race or Kit Car oil pan
  • Fits 2005-up Mustang SCCA and NASA racecars with 302 or 351W engines
  • Includes 1/2' N.P.T. oil temperature bung and magnetic drain plugs
  • Compatible with most starter/flywheel combinations
  • Includes Universal Dipstick Kit 710-25970
  • For use with 1 piece, rear sump oil pan gasket such as 710-93160 for 302 applications or 710-93162 for 351W applications

    Performance Oil Pans Designed for Road Racing Environments

    Moroso has combined their drag racing and oval track experience to develop these Road Race Oil Pans. Each high-performance pan is designed to provide superior oil control when accelerating, braking, or turning in any direction. With fabricated steel construction, thick pan rails, and trap doors that contain the oil in any racing situation, Moroso Road Race Pans supply the right amount of oil to your engine so it can reach its full potential.

Part TypeOil Pan
Product LineMoroso Road Race Oil Pans
BrandMOROSO
Package Height9.9
Package Width15.6
Package Length24.0
Weight21.54 PG
Part CategoryPerformance Parts
Maximum Stroke With Oe Rod3.4 in (86.36 mm)
Oil Pan Depth7.5 in (190.5 mm)
Part FitmentSemi Universal
Vendor Part Number20533
Package Qty1
Package TypeEA
