Made in USA

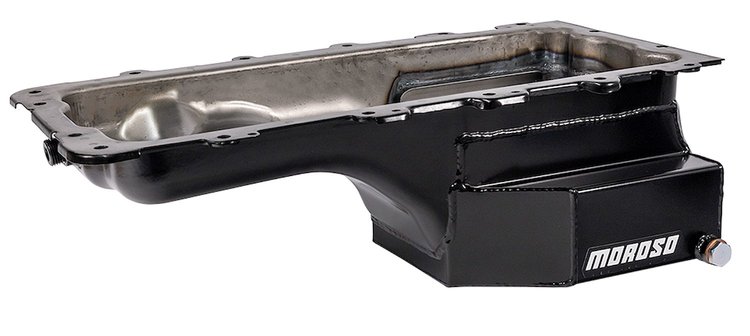

20548 Drag Race Oil Pan 1979-Up Ford including 2005-Up Mustang
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20548

20548 Drag Race Oil Pan 1979-Up Ford including 2005-Up Mustang

$54399
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Ford
    Drag Race Oil Pan
  • 1979-Up Ford including 2005-Up Mustang
  • Ford 4.6L/5.4L SOHC/DOHC
  • Rear Wet Sump
  • 7-Quart Capacity
  • 6.25" Depth
  • Black

    Recommended Pickup:
  • Use Ford part #F6ZZ6622CE

    Features:
  • Four trap door baffles for Drag or Drag Race applications
  • Anti-slosh baffled sump
  • Increased oil capacity over stock
  • Designed to work with factory 2V, 3V & 4V oil pump pickup
  • Uses factory dipstick
  • 1/2" NPT fitting for supercharger/turbocharger drain back
  • 1/2" NPT fitting for oil temperature sender

    Note: Oil pan capacities do not include oil filter capacity

    Oil Pans to Maximize Your Engine's Performance

    Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

    Show More

    Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

    Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

    Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

    Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

    Note: All steel pans will have a clear zinc finish.

Part TypeOil Pan
Product LineMoroso Drag Race Oil Pans
BrandMOROSO
Package Height8.8
Package Width15.8
Package Length23.3
Weight16.7 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishBlack
Kickout PositionPassenger side
Oil Pan MaterialSteel
Gaskets IncludedNo
Oil Pan Depth6.5 in (165.1 mm)
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number20548
Package Qty1
Package TypeEA
