Vehicle Info NeededMOROSOPART NUMBER: 710-20549

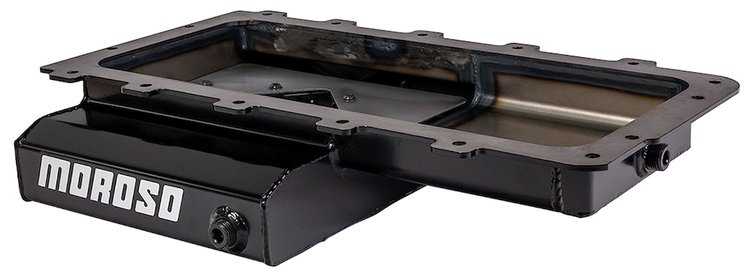

20549 Oil Pan, Ford 4.6-5.4, Cobra Replica, Road Race Baffled, Rear T-Sump
$64799
Ships on 09/18/2026
Lowest Price Guarantee- Oil Pan
- Ford 4.6-5.4
- Cobra Replica
- Road Race Baffled
- Rear T-Sump
Moroso 20549Features:
Oil Pan, Ford 4.6/5.4, Kit Car or Factory Five, Sump 4" Deep, 9 1/8" Long, 14.5" Wide with Road Race Baffling
- Steel, Wet Sump, 7 Quart Capacity, 4" DeepEngine Application: 4.6/5.4L SOHC/DOHCFits: Cobra Kit Cars that require a rear sump oil panFor Ford 4.6/5.4 SOHC/DOHCDesigned for Cobra Replicas that require a shallow rear sump oil panFeatures a race proven four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racingSteel with a clear zinc finishOil pan has a thick steel rail with a 4" deep, 10-3/4" long by 14-1/2" wide rear sumpDesigned to be used with the Moroso No. 22933 windage trayUses the factory Mustang DipstickExtra capacity; holds 1 more quarts that the Mustang O.E.M. oil pan1/2" NPT fitting for supercharger drain back1/2" NPT fitting for oil temperature sender
Part TypeOil Pan
BrandMOROSO
Package Height9.0
Package Width16.0
Package Length24.0
Weight17.67 PG
Part CategoryPerformance Parts
Vendor Part Number20549
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
