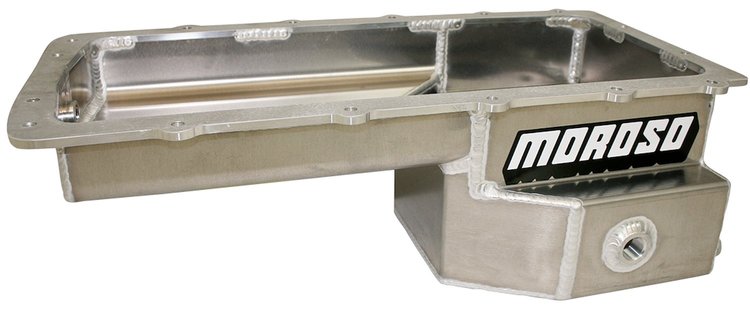

20574 Drag Race Baffled Oil Pan Aluminum For 1979-Up Ford Mustang 5.0 'Coyote' Engine - Rear Sump

Name: 20574 Drag Race Baffled Oil Pan Aluminum For 1979-Up Ford Mustang 5.0 'Coyote' Engine - Rear Sump
Brand: MOROSO
SKU: 710-20574
Price: 891.99 USD
Availability: InStock

^$891⁹⁹

Ships on Sep 15, 2026

Lowest Price Guarantee

Ford

Drag Race Baffled Oil Pan

For 1979-Up Ford Mustang 5.0 'Coyote' Engine

Also Fits Other 1979-2010 Ford Rear Sump Applications With 5.0 'Coyote' Engines

Rear Wet Sump

9-Quart Capacity

6 1/4 in. Depth

Aluminum

Features:

Pan contains a thick billet aluminum rail with a fabricated aluminum rear sump.
For use with the 5.0 "Coyote" factory windage tray and dipstick.
Race-proven trap door assembly and anti-slosh baffle to keep the oil in oil pump pickup area.
1/2 in. NPT fitting for supercharger drain back.
1/2 in. NPT fitting for oil temperature sender.
20 mm fitting for the factory oil level sensor.

Note: Oil pan capacities do not include oil filter capacity.

Oil Pans to Maximize Your Engine's Performance

Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

Note: All steel pans will have a clear zinc finish.

Part TypeOil Pan

Product LineMoroso Drag Race Oil Pans

BrandMOROSO

Package Height9.5

Package Width15.0

Package Length24.0

Weight9.955 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number20574

Package Qty1
