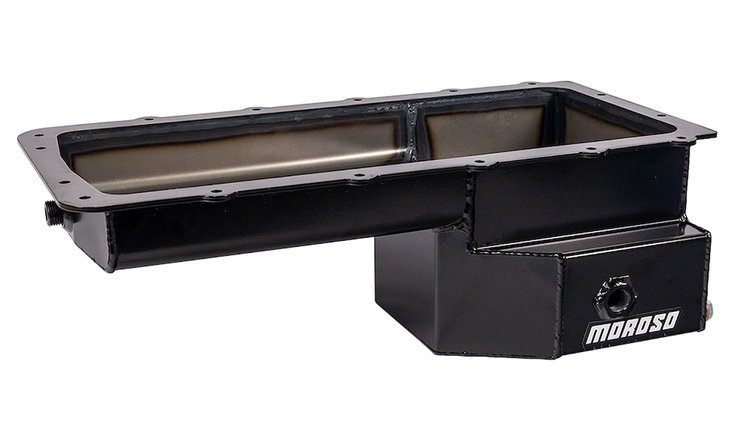

20575 Road Race Oil Pan Ford 5.0 Modular "Coyote" Engines Fox Body Swap - Steel
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20575

20575 Road Race Oil Pan Ford 5.0 Modular "Coyote" Engines Fox Body Swap - Steel

$51499
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

24577 Oil Pump Pick Up Tube for Ford Coyote Engines in Cobra Kit Cars [2011-2017 Gen 1/2 Oil Pumps]

MOROSO

24577 Oil Pump Pick Up Tube for Ford Coyote Engines in Cobra Kit Cars [2011-2017 Gen 1/2 Oil Pumps]

Part Number : 710-24577
$24999
Coyote Swap Long Tube Headers 1979-2004 Ford Mustang 5.0L

BBK PERFORMANCE PARTS

Coyote Swap Long Tube Headers 1979-2004 Ford Mustang 5.0L

Part Number : 129-16340
$89999
Coyote Swap Long Tube Headers 1979-2004 Ford Mustang 5.0L

BBK PERFORMANCE PARTS

Coyote Swap Long Tube Headers 1979-2004 Ford Mustang 5.0L

Part Number : 129-1634
$84999
22936 Oil Pan Gasket w/Integrated Windage Tray for Ford 5.0L Coyote & 5.2L VooDoo Engines

MOROSO

22936 Oil Pan Gasket w/Integrated Windage Tray for Ford 5.0L Coyote & 5.2L VooDoo Engines

Part Number : 710-22936
$15599

Ford 5.0L Coyote, 5.2L VooDoo
Road Race Oil Pan
  • Ford 5.0 Modular "Coyote" Engines
  • Fox Body Swap
  • 6.625 in. Deep
  • Road Race Baffled
  • Fully-Fabricated Steel
  • Black Finish

    Fits: 1979-1993 Ford Mustang and other Fox body chassis with a 5.0 Coyote swap using BBK or American Racing Headers

    Features:

    • 7 1/2 Quart Capacity
    • Wet Sump
    • Thick steel rail
    • Uses factory oil pump pickup
    • For use with 5.0 "Coyote" factory windage tray and gasket
    • Race-proven trap door assembly and anti-slosh baffle
    • 1/2 in. NPT fittings for oil temperature sender and supercharger drain back
    • 20 mm fitting for the factory oil level sensor (if the factory low oil warning sensor is not used, a 20mm plug with copper washer 710-22738 is available

      • Performance Oil Pans Designed for Road Racing Environments

      Moroso has combined their drag racing and oval track experience to develop these Road Race Oil Pans. Each high-performance pan is designed to provide superior oil control when accelerating, braking, or turning in any direction. With fabricated steel construction, thick pan rails, and trap doors that contain the oil in any racing situation, Moroso Road Race Pans supply the right amount of oil to your engine so it can reach its full potential.

    Part TypeOil Pan
    Product LineMoroso Road Race Oil Pans
    BrandMOROSO
    Package Height8.8
    Package Width15.7
    Package Length24.1
    Weight18.09 PG
    Part CategoryPerformance Parts
    Oil Pan Depth6.625 in (168.3 mm)
    Part FitmentSemi Universal
    Vendor Part Number20575
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
    Some parts are not legal for use in California or other states with similar laws / regulations
