Vehicle Info NeededMOROSOPART NUMBER: 710-20608

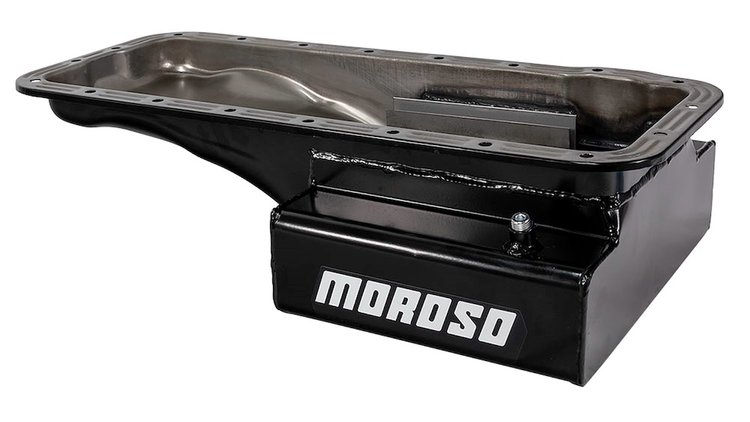

20608 Road Race Oil Pan Ford FE 352-428
$41647$478.99You Save$62.52
3 left in stock
Ships on Nov 02, 2026
Lowest Price GuaranteeFord FE
Road Race Oil PanFord FE 352-428 Kicked-Out Sump Front Wet Sump 8-quart capacity 6" Depth Black Finish
- Fits most front sump production chassis
- Enhanced Road Race baffling
- Includes 6 trap doors that keep the oil in the pickup area
- Two baffles help control oil
- Kicked-out sump increases oil capacity which reduces oil temperature
- Oil temperature bung eases installation
- Includes a Dipstick bung
- Magnetic oil drain plug included
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickup:
High-Performance Oil Pans
Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.
Part TypeOil Pan
Product LineMoroso Street/Strip Oil Pans
BrandMOROSO
Package Height10.2
Package Width17.5
Package Length25.6
Weight17.55 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.98 in (101.092 mm)
Gaskets IncludedNo
Oil Pan Depth6 in (152.4 mm)
Sump LocationFront
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentDirect Fit
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number20608
Package Qty1
Package TypeEA
