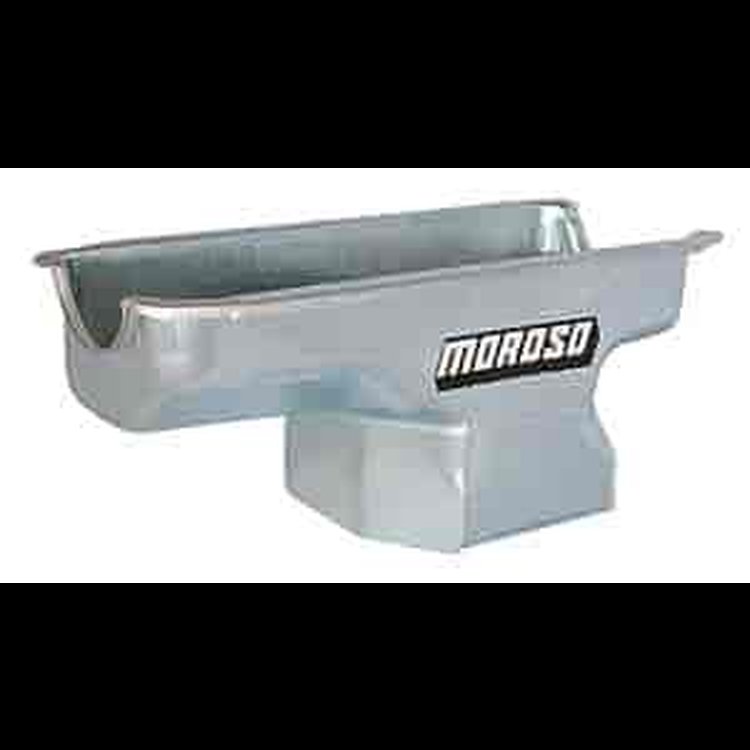

Street/Strip Oil Pan Small Block Chrysler 360 (Non-Magnum)

Vehicle Info Needed

MOROSOPART NUMBER: 710-20730

Street/Strip Oil Pan Small Block Chrysler 360 (Non-Magnum)

Name: Street/Strip Oil Pan Small Block Chrysler 360 (Non-Magnum)
Brand: MOROSO
SKU: 710-20730
Price: 454.99 USD
Availability: InStock

^$454⁹⁹

Ships on Sep 04, 2026

Lowest Price Guarantee

Small Block Chrysler

Street/Strip Oil Pan

Small Block Chrysler 360 (Non-Magnum)

Deep Sump

Wet Sump 8-quart capacity

10" Depth

Clear Zinc finish

Fits most production chassis
Accepts 4" stroke with steel rods
Anti-slosh baffling
Compatible with most starter/flywheel combinations

Note: Oil pan capacities do not include oil filter capacity

Recommended Pickup:

710-24700 -- Fits Stock Oil Pumps
710-24770 -- Fits Same pumps as above with 4" stroke crankshafts

Part TypeOil Pan

BrandMOROSO

Package Height10.87

Package Width10.87

Package Length26.5

Weight13.15 PG

Part CategoryPerformance Parts

Oil Pan Capacity8 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledYes

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishClear zinc

Oil Pan MaterialSteel

Maximum Stroke With Oe Rod3.578 in (90.881 mm)

Gaskets IncludedNo

Oil Pan Depth10 in (254 mm)

Rear Main Seal Style2-piece

Sump LocationCenter

Crank Scraper IncludedNo

Windage Tray IncludedNo

Part FitmentDirect Fit

Kicked OutNo

Stroker ClearancedYes

Vendor Part Number20730

Package Qty1

Package TypeEA
