Vehicle Info NeededMOROSOPART NUMBER: 710-20912

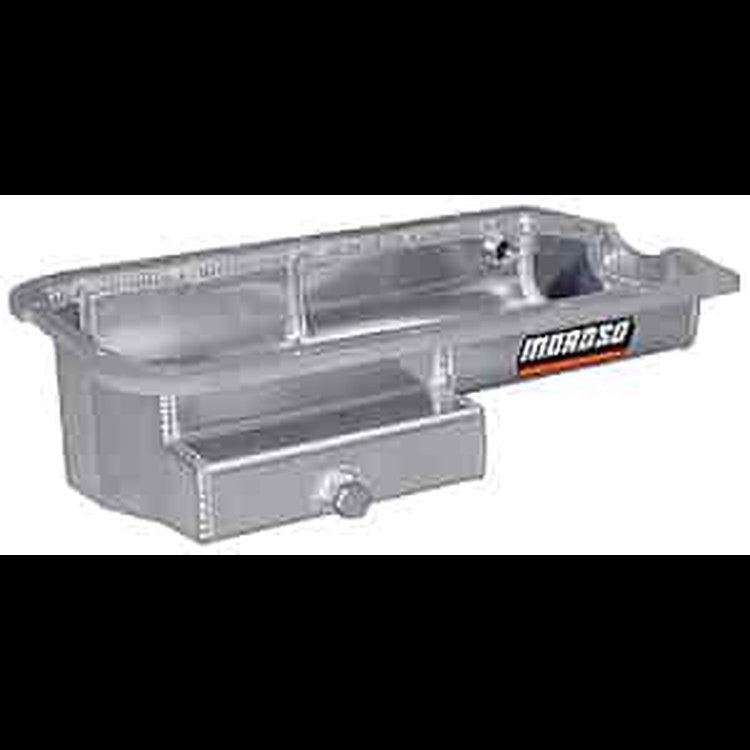

Street/Strip Oil Pan Honda 2.2/2.3L
$71499
Ships Tomorrow
Lowest Price GuaranteeAcura/Honda
- Street/Strip Oil Pan
- Honda 2.2/2.3L
- Kicked-Out Sump
- Wet Sump 5.5 quart capacity
- 5.375" Depth
- Aluminum
Recommended Pickup: - 710-24012 Fits Stock Oil Pump
Applications: - Fits Honda Prelude 2.2L & 2.3L engines (including all H22, F22 & H23 variants)
- For use in engine swaps(Check dimensions for clearance)
Features: - Fully fabricated all-aluminum pan
- One piece .375" thick billet pan rail provides a rigid flange for leak-free sealing
- Kicked-out sump increases capacity without restricting ground clearance
- Integral sump tray and large, 6" trap-door baffle for oil control
- Designed for stock pan gasket
- Includes 1/2" NPT bung for plumbing turbo return line
- Has 1/2" NPT bung for installing oil temperature sender
- Includes magnetic drain plug with extra washer
- Includes plugs for unused bungs
- Includes pan mounting kit with hex-drive steel studs and serrated-face flare nuts
Note: Oil pan capacities do not include oil filter capacity
Precision-Welded Oil Pans
Whether you drag, oval or road race, Moroso has the oil pan your engine needs; specially designed for front or rear-wheel drive sport compacts. Each pan is fully fabricated from aluminum or steel, with race-proven features that control oil for maximum power. The key is to keep the crankshaft free of excess oil which allows the engine to spin freely and achieve its full power potential. Check out all the special features listed with each pan.
Part TypeOil Pan
Product LineMoroso Sport Compact Oil Pans
BrandMOROSO
Package Height9.0
Package Width15.8
Package Length23.9
Weight9.5 PG
Part CategoryPerformance Parts
Oil Pan Capacity5 1/2 quarts
Hardware IncludedYes
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishNatural
Kickout PositionRear
Oil Pan MaterialAluminum
Maximum Stroke With Oe Rod3.622 in (91.999 mm)
Gaskets IncludedNo
Oil Pan Depth5.375 in (136.5 mm)
Rear Main Seal Style1-piece
Sump LocationDriver side
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number20912
Package Qty1
Package TypeEA
