Vehicle Info NeededMOROSOPART NUMBER: 710-20930

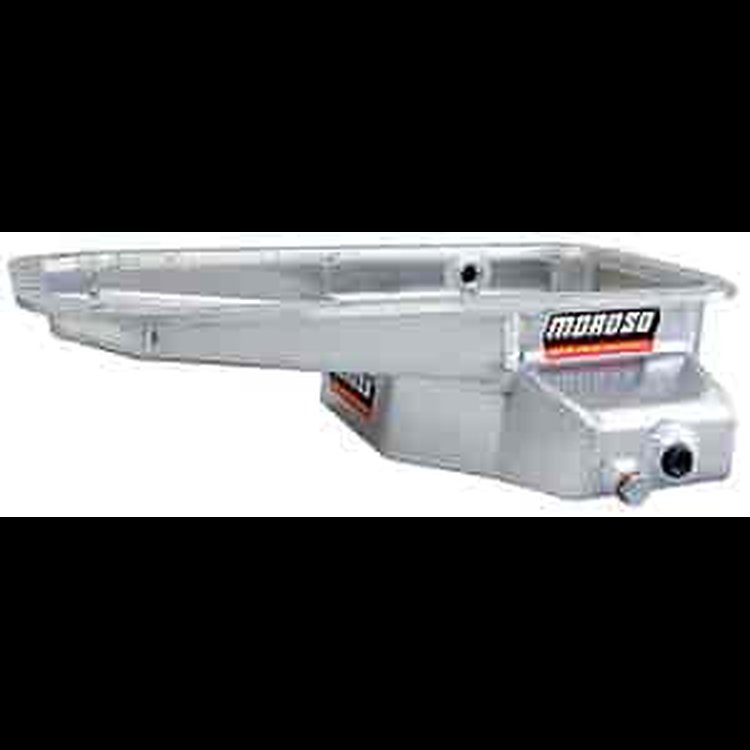

Street/Strip Oil Pan Toyota 3C, 2T and 2C engines
$71499
1 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeToyota
- Street/Strip Oil Pan
- Toyota 3C, 2T and 2C engines
- Kicked-Out Sump
- Wet Sump 6 quart capacity
- 5.25" Depth
- Aluminum
Recommended Pickups: - Use Stock pickup and pump assembly
Features: - For engine swaps, check dimensions for clearance
- Fully fabricated aluminum pan
- One piece .250" thick billet aluminum pan rail provides a rigid flange for leak-free sealing
- Louvered windage maximizes horsepower and de-aerates oil
- A separate sump tray helps prevent oil from splashing back and also de-aerates oil returning from the turbo
- Kicked-out sump increases capacity without loosing ground clearance
- Trap-door baffling for Road Racing, also an excellent Drag Race pan
- 1/2" NPT bung for plumbing turbo oil return line
- 1/2" NPT bung for installing oil temperature sender
- Two magnetic drain plugs facilitate oil draining when the engine is canted left or right
- Includes mounting kit with hex-drive steel studs and serrated-face flange nuts
Note: Oil pan capacities do not include oil filter capacity
Part TypeOil Pan
BrandMOROSO
Package Height9.0
Package Width15.25
Package Length22.37
Weight11.85 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedYes
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishNatural
Kickout PositionDriver and passenger side
Oil Pan MaterialAluminum
Gaskets IncludedNo
Oil Pan Depth5.25 in (133.4 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number20930
Package Qty1
Package TypeEA
