Vehicle Info NeededMOROSOPART NUMBER: 710-20935

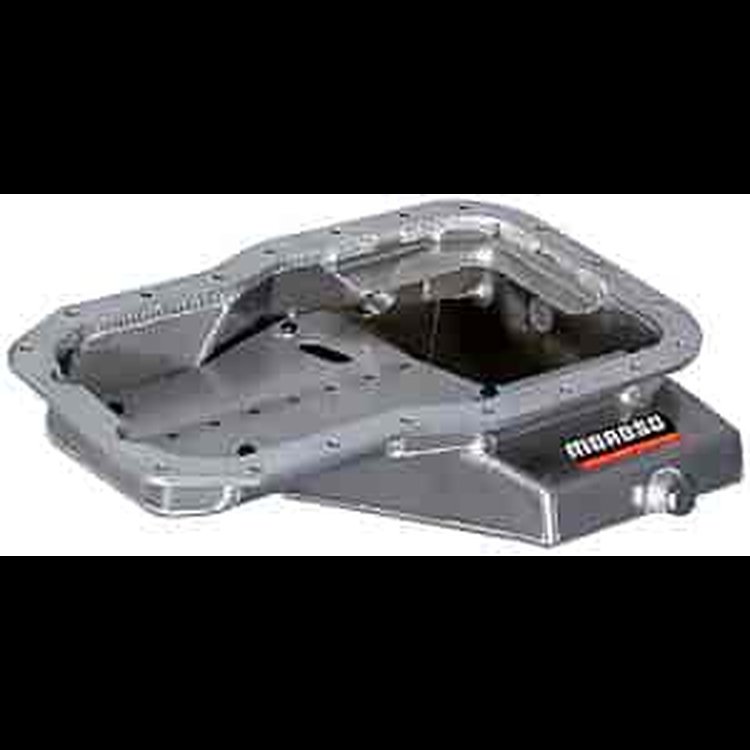

Street/Strip Oil Pan Toyota Model 3SGT 2.0L Turbo and 5SFE Non-Turbo
$66399
Ships on Sep 15, 2026
Lowest Price GuaranteeToyota
- Street/Strip Oil Pan
- Toyota Model 3SGT 2.0L Turbo and 5SFE Non-Turbo
- Kicked-Out Sump
- Wet Sump 6.5 quart capacity
- 7.5625" Depth
- Aluminum
Applications: - 1990-95 MR2
- 1990-95 Celica
Recommended Pickup: - Use Stock pickup and pump assembly
Features: - Fully fabricated aluminum pan
- Rigid one-piece .250" thick billet aluminum pan rail
- Kicked-out sump increases capacity without restricting ground clearance
- Solid windage tray with oil drain & dipstick cut out holes prevents oil from splashing back to the rotating assembly
- Trap door baffling ensures adequate oil control in Road Racing and excellent for Drag Racing
- Front of pan includes a 28mm threaded bung to accommodate the factory turbo drain back connection
- Side of pan retains a 3/8" thick billet receptacle to accommodate the factory oil level sensor
- Includes mounting kit with hex drive steel studs and serrated faced flanged nuts
Note: Oil pan capacities do not include oil filter capacity
Part TypeOil Pan
BrandMOROSO
Package Height9.1
Package Width15.5
Package Length23.4
Weight9.8 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedYes
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishNatural
Kickout PositionDriver and passenger side
Oil Pan MaterialAluminum
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number20935
Package Qty1
Package TypeEA
