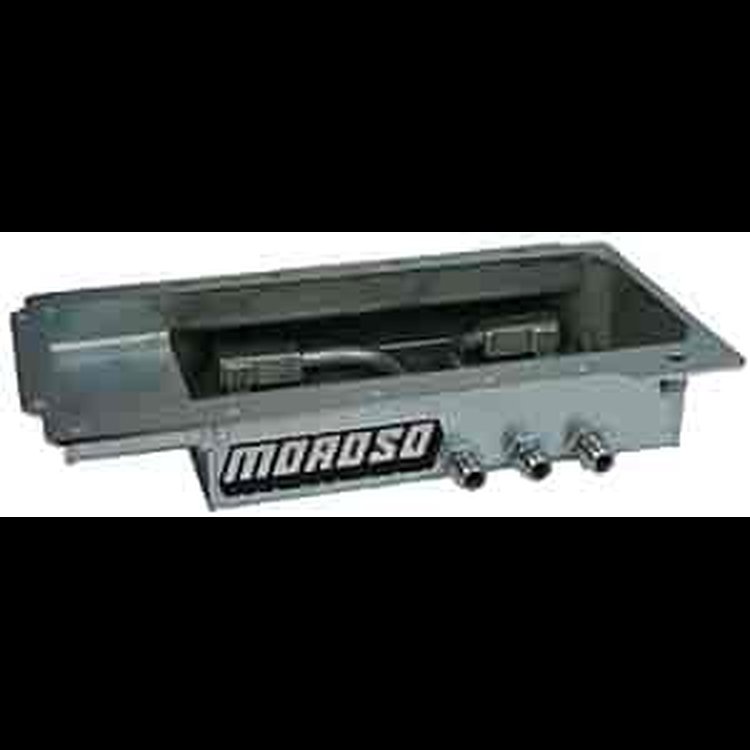

Dry Sump Oil Pan GM LS-Series Engine Blocks

Name: Dry Sump Oil Pan GM LS-Series Engine Blocks
Brand: MOROSO
SKU: 710-21155
Price: 572.99 USD
Availability: InStock

^$572⁹⁹

1 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Chevy LS Series

GM LS-Series Engine Blocks
Dry Sump
Front of the Oil Pan is 1-3/4" Deep to the
Beginning of the 4" Deep Sump
Sump: 16" L x 10" W
Fabricated Steel
Has versatile 3 scavenge -12 AN male pick up design allows the oil pan to be used as aCircle Track or Road Race Oil Pan, would also make an excellent Drag Race or Off Road oil pan
Oil pan has a 3/16" thick precision laser cut steel rail with a 14-gauge steel sump tostand up to the toughest racing conditions
Clears 4.125" stroke with most steel rods
Has a -10 AN male fitting for a oil return

Premium Fabricated Oil Pans for Racing

Moroso manufactures dry sump pans for many racing classes including, but not limited to, Oval Track, Road Racing, and Drag Racing. Each pan includes a maximum-sized kick-out, block-high scraper, uni-directional windage tray screen, and special baffling. These race-winning features produce the ultimate in dry sump technology and the highest horsepower gain possible for making it to the winner's circle.

Part TypeOil Pan

Product LineMoroso Dry Sump Oil Pans

BrandMOROSO

Package Height11.0

Package Width12.5

Package Length26.75

Weight17.85 PG

Part CategoryPerformance Parts

Oil Pan MaterialSteel

Gaskets IncludedNo

Hardware IncludedNo

Dipstick ProvisionNo
