Made in USA

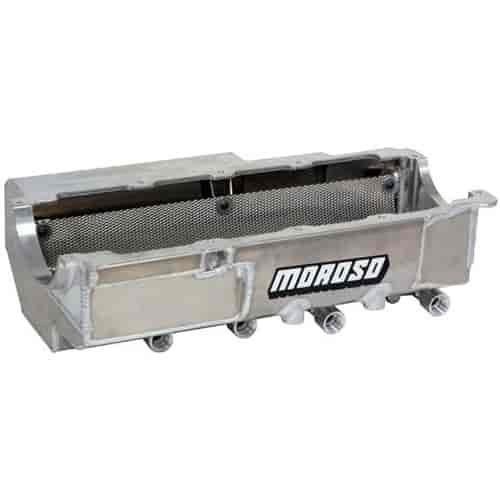

Dry Sump Oil Pan Competition Eliminator, Top Dragster, Top Sportsman, Super Comp, Super Gas and Bracket Cars
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-21581

Dry Sump Oil Pan Competition Eliminator, Top Dragster, Top Sportsman, Super Comp, Super Gas and Bracket Cars

$1,53999
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy Big Block
    Dry Sump Oil Pan
  • Competition Eliminator, Top Dragster, Top Sportsman, Super Comp, Super Gas and Bracket Cars
  • Big Block Chevy Mark IV
  • Driver-Side Pickups
  • Dry Sump
  • 7.5" Depth
  • Aluminum

    Recommended Components:
  • Dry Sump Pumps for Full Body: 710-22344, 710-22254 and 710-22244
  • Dry Sump Pumps for Dragsters: 710-22444, 710-22524 and 710-22424
  • Dry Sump Oil Tanks: 710-22683, 710-22688, 710-22684 and 710-22689
  • Dry Sump Oil Pump Drive Kits: 710-23610, 710-23670 and 710-23672

    Features:
  • Fully fabricated aluminum utilizing "Race" pan rail bolt pattern
  • Requires drilling and tapping of block pan rail on some blocks
  • Accepts larger stroke combinations
  • Four -12AN female pickups
  • 7.5" Depth for diaper clearance
  • Power kick-out design for maximum horspower
  • Billet end seals ensure consistant sealing surface to billet fron cover and rear main caps
  • For use with 153 and 168 tooth flywheels

    Note:
  • Always check dimensions for chassis clearance
Part TypeOil Pan
BrandMOROSO
Package Height9.7
Package Width17.7
Package Length26.4
Weight17.25 PG
Part CategoryPerformance Parts
Oil Pan MaterialAluminum
Gaskets IncludedNo
Hardware IncludedNo
Dipstick ProvisionNo
BaffledNo
Rear Main Seal Style2-piece
Sump StyleDry
QuantitySold individually
Oil Pan FinishNatural
Part FitmentSemi Universal
Kicked OutYes
Vendor Part Number21581
Package Qty1
Package TypeEA
