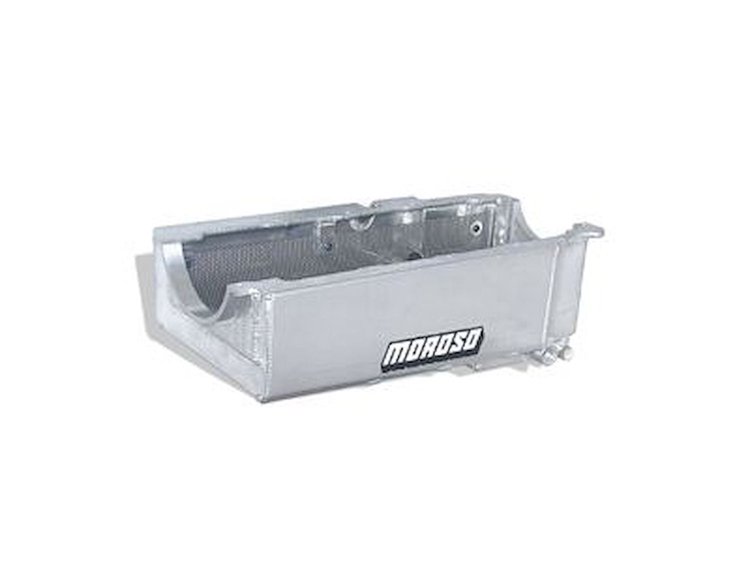

21601 Drag Race Oil Pan Comp Eliminator, Super Gas/Comp, and Bracket Cars

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Comp Eliminator, Super Gas/Comp, and Bracket Cars
No Cross-member Under Engine
Big Block Chevy Mark IV
Wet Sump 7-quart capacity
8" Depth
Aluminum

Recommended Oil Pump:
710-22600 Moroso External Oil Pump
Recommended Drive Kits:
710-23610 Drag Race Drive w/Crank Driven Water Pump
710-23670 Drag Race Drive w/Electric Water Pump (1/4" motor plate or crank trigger)
710-23672 Drag Race drive w/Electric Water Pump (1/4" motor plate and crank trigger)
Features:
Fully Fabricated Aluminum utilizing "Race" pan rail bolt pattern
Requires drilling and tapping of block pan rail on some blocks
Accepts 4.75" stroke with aluminum rods
Pan Rail o-ring bolt access bungs
Internal uni-directional screen
Double kick-out design ensures large stroke, wide main clearance and maximum horsepower
Billet end seals ensure consistant sealing surface to billet front covers and rear main caps
1" Deep mini sump design works with Moroso spur gear and gerotor billet oil pumps
For use with 168-tooth flywheel combinations
Note: Oil pan capacities do not include oil filter capacity

Oil Pans to Maximize Your Engine's Performance

Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

Note: All steel pans will have a clear zinc finish.

Part TypeOil Pan

Product LineMoroso Drag Race Oil Pans

BrandMOROSO

Package Height9.6

Package Width18.0

Package Length25.5

Weight17.1 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number21601

Package Qty1
