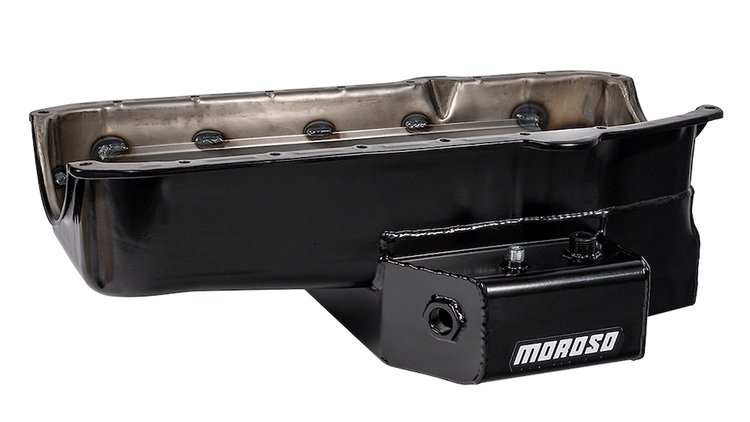

21816 Road Race Oil Pan C3 & C4 Corvette, Kit Cars

Name: 21816 Road Race Oil Pan C3 & C4 Corvette, Kit Cars
Brand: MOROSO
SKU: 710-21816
Price: 538.99 USD
Availability: InStock

^$538⁹⁹

Ships on 09/17/2026

Lowest Price Guarantee

Small Block Chevy

Road Race Oil Pan

C3 & C4 Corvette, Kit Cars

Low Ground clearance applications

1980-1985 Small Block Chevy with Passenger-Side Dipstick

With 2-piece Rear Main Seal

Wet Sump 7-quart capacity

Clear Zinc Finish

Recommended Pickups:

710-24811 Fits: M55 style Standard Volume Oil Pump in Moroso 710-21811, 710-21812 and 710-21816
710-24814 Fits: M55HV style High Volume Oil Pump in Moroso 710-21811, 710-21812 and 710-21816
Accepts up to 4.125 in. stroke with most steel rods
Fits 4 Bolt Main Caps Including Front and Rear
5 trap door baffles for oil control in Road Racing, also an excellent Road Race pan
Has a built-in crank scraper, removable louvered windage tray for horsepower
Rear Sump is 7" deep, 13-3⁄4" wide and 12" long
20mm fitting for oil level sensor, optional 20mm plug No. 22738 available for use when the factory low warning sensor is not going to be utilized
Use stock dipstick; also has a 1⁄4" NPT fitting for Moroso Universal Dipsticks No. 25970, 25971 & 25973
Steel with a clear zinc finish
Compatible with most starter/flywheel combinations

Part TypeOil Pan

BrandMOROSO

Package Height8.37

Package Width15.25

Package Length22.37

Weight17.2 PG

Part CategoryPerformance Parts

Maximum Stroke With Oe Rod4.125 in (104.775 mm)

Oil Pan Depth7 in (177.8 mm)

Part FitmentSemi Universal

Vendor Part Number21816

Package Qty1
