Made in USA

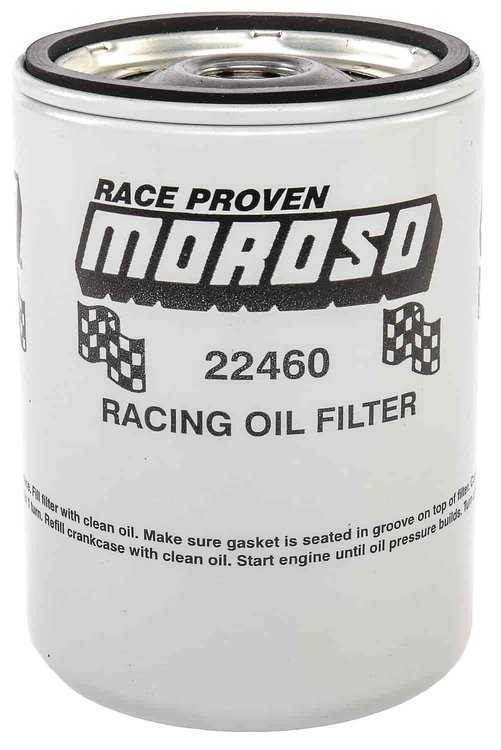

Racing Oil Filter Chevy Style
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-22460

Racing Oil Filter Chevy Style

$2399
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

    Racing Oil Filter
  • Chevy Style
  • 5.250" Tall
  • 13/16-16 UNF Thread
  • Burst Strength 350 PSI (max)

    Long design Chevy replacement filter. Replaces follow manufactures filters:
  • JEGS JG302
  • Fram PH13, TG13 and HP4 (410-HP4)
  • Motorcraft FL12
  • AC PF35
  • Purolator L30040
  • Wix 51061
  • GM 6438384, 6437946 and 6435679
  • Lee LF29 and LF29HP
  • Hastings LF24 and LF224
  • STP S-029

After many years of designing and testing racing oil systems and related components, Moroso has determined what's most important to oil filtration. Many oil filter manufactures stress the importance of filtering the smallest particles out of your engine's oil, with reference to "micron ratings" of 10 or less for a filter's efficiency. With the help of research performed by filtration technology experts, Moroso engineers have determined that particles smaller than 20 microns in diameter are not large enough to produce engine wear. Furthermore, Moroso has found that filters with extremely low micron ratings can create an excessive pressure drop across the filter. They can be so restrictive that the filter by-pass valve can open. With the by-bass valve open, unknown to you - NO FILTRATION will occur!

Show More

To maximize filter performance, Moroso Racing Oil Filters have a rating of 27 microns, which produces a maximum initial restriction of only 2.5 psi when tested to SAE j806! The result is less pressure drop, more flow, less oil by-pass and maximum filtration performance important in severe racing conditions.

Features:

  • Roll Formed Threads Ensure Precise Pin-On Fit
  • Steel Back Plate Provides Added Protection Against Pressure Surges
  • Cured Resin Impregnated Element Removes Harmful Particles
  • Rolled Seam Housing Withstsnds Over 200 psi
  • Anti-Drainback Valve Keeps Oil in Filter After Engine Shut-Down

Part TypeOil Filter
Product LineMoroso Racing Oil Filters
BrandMOROSO
Package Height5.25 in (133.35 mm)
Package Width3.9
Package Length5.6
Weight1.25 PG
Part CategoryPerformance Parts
Smallest Particle Filtered27 microns
Oil Filter StyleCanister
QuantitySold individually
Filter Bypass Relief ValveYes
Maximum Burst Pressure (Psi)350
Part FitmentUniversal
Anti-Drainback ValveYes
Vendor Part Number22460
Package Qty1
Package TypeEA
