Vehicle Info NeededMOROSOPART NUMBER: 710-23782

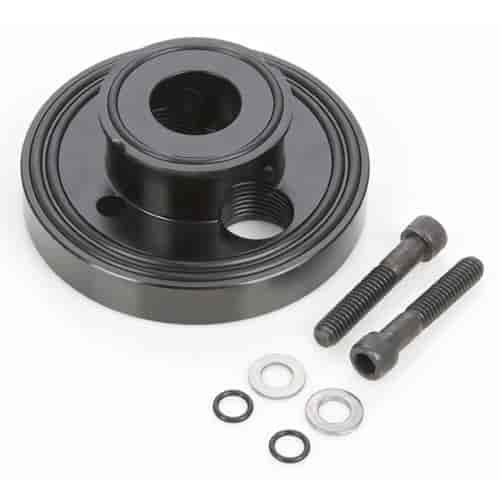

Oil Filter Bypass Plate Small Block/Big Block Mark IV Chevy (without bolt hole at center of filter pad)
$10399
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeAdapter/Bypass
- Oil Filter Bypass Plate
- Small Block/Big Block Mark IV Chevy (without bolt hole at center of filter pad)
- Merlin Big Block
- Billet Aluminum
Machined from billet anodized aluminum, this Bypass Plate is needed when using a remote oil filter or returning oil from dry sump oiling system. The O-rings are captured in the plate for tight seal against block surface. There are O-Rings installed under the bolt heads for leak-free performance. Drilled and tapped to accept -10AN fittings, all mounting hardware and O-rings are included.
Part TypeOil Filter By-Pass Adapter
BrandMOROSO
Package Height2.1
Package Width6.8
Package Length9.7
Weight0.91 PG
Part CategoryPerformance Parts
Outlet Size-10 AN O-ring
Oil Filter IncludedNo
Inlet Size-10 AN O-ring
Hardware IncludedYes
Fittings IncludedNo
QuantitySold as a kit
Adapter FinishBlack
Part FitmentSemi Universal
Adapter MaterialAluminum
Hoses IncludedNo
Filter Adapter StyleBolt-on bypass adapter
Vendor Part Number23782
Package Qty1
Package TypeEA
