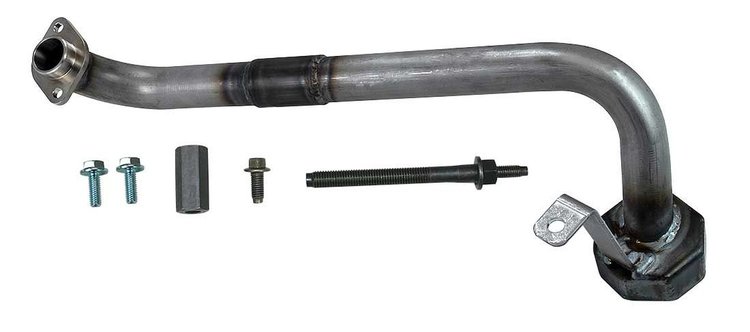

24583 Oil Pump Pick Up Tube for Ford 5.0, 5.2L Coyote Engines Swaps [Mustang, w/Drag Race Baffled Pans]
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-24583

24583 Oil Pump Pick Up Tube for Ford 5.0, 5.2L Coyote Engines Swaps [Mustang, w/Drag Race Baffled Pans]

$24599
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Ford 5.0L Coyote, 5.2L VooDoo
High Flow Oil Pump Pickup Tube
  • Fits Ford 5.0, 5.2L Coyote Engines w/Moroso Oil Pans in 1979+ Ford Mustangs
  • Large Diameter Tube Ensures Flow During High Performance Use
  • Sold as a Kit

    Moroso 24583 Oil Pump Pick Up Tube Features:

    • Large diameter tube ensures flow during continuous high-RPM use
    • Pickup features inlet designed for use with Gen. 4 Mustang Coyote & Aluminator oil pumps
    • Not compatible with Gen. 4 F-150 Coyote applications

    Moroso 24583 Oil Pump Pick Up Tube Includes:

    • Pickup tube
    • Pickup tube o-ring
    • Pickup flange bolts x2
    • Main cap bolt
    • Standoff
    • Pickup tube to standoff 8mm bolt

    Moroso 24583 Oil Pump Pick Up Tube Required Items:

    • Moroso Windage Tray With Oil Pan Gasket for Ford 5.0L Coyote, 5.2L VooDoo 22936
      and
    • Moroso Drag Race Baffled Oil Pan Aluminum For 1979-Up Ford Mustang 5.0 'Coyote' Engine - Rear Sump 20574
      or
    • Moroso Drag Race Oil Pan for 1979-1993 Ford Mustang 5.0L Coyote/5.2L Voodoo Swap - Wet Sump 20577

    • Part TypeOil Pump Pickup
    BrandMOROSO
    Package Height6.0
    Package Width6.0
    Package Length18.0
    Weight3.37 PG
    Pickup Welded OnNo
    Pickup IncludedYes
    Vendor Part Number24583
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
