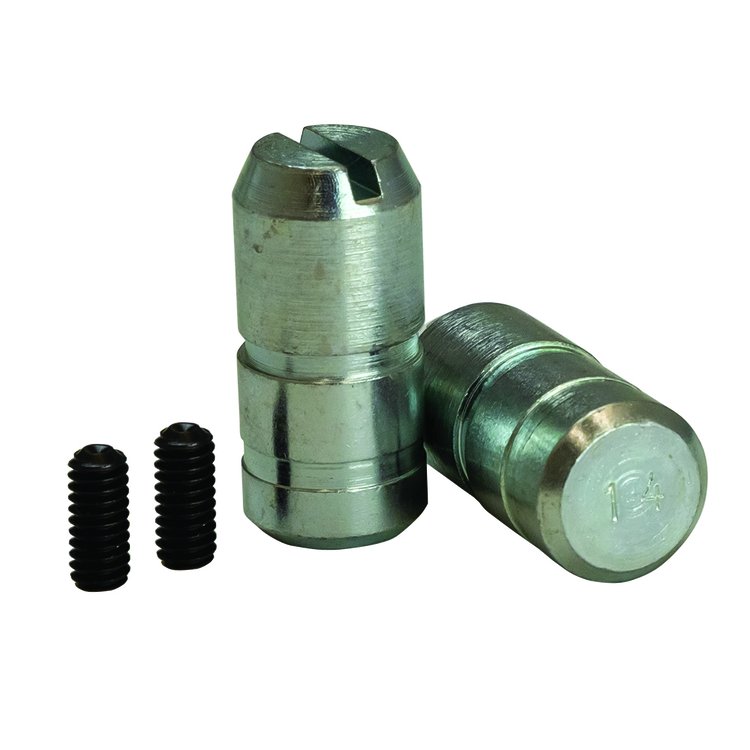

Bellhousing Dowel Pins .014" Offset

Name: Bellhousing Dowel Pins .014" Offset
Brand: MOROSO
SKU: 710-37936
Price: 29.99 USD
Availability: InStock

^$29⁹⁹

1 left in stock

Ships Today

Lowest Price Guarantee

.014" Offset

Extra Long Bellhousing Dowel Pins; GM V8/V6 Blocks; Drilling/Tapping Block Req.; Incl. Set Screws/Instructions; 0.014 Offset; L-1.328 in.; • Provides an easy method of properly aligning the transmission input shaft to the crankshaft pilot bearing• Extra long to simplify the task of installing a bellhousing on the engine block• Offset Dowel Pins include set screws and instructions for locking pins into place drilling and tapping of block required• Getting alignment concentric to within ± .005" insures a clean clutch release, maximum pilot bearing and transmission life and reduced shifting problems• .625" diameter• Two per package• Fits virtually all GM V8 and V6 blocks

Features:

Provides an easy method of properly aligning the transmission input shaft to the crankshaft pilot bearing
Extra long to simplify the task of installing a bellhousing on the engine block
Offset Dowel Pins include set screws and instructions for locking pins into place; drilling and tapping of block required
Getting alignment concentric to within ±.005" insures a clean clutch release, maximum pilot bearing and transmission life and reduced shifting problems
.625" diameter
Two per package
Fits virtually all GMV8 and V6 blocks

Part TypeEngine Block Dowel Pin

Product LineMoroso Extra Long Bellhousing Dowel Pins

BrandMOROSO

Package Height2.0

Package Width4.0

Package Length5.0

Weight0.22 PG

Part CategoryPerformance Parts

Dowel Pin Offset0.014 in (0.356 mm)

QuantitySold as a pair

Dowel Pin Length1.328 in (33.731 mm)

Part FitmentSemi Universal

Dowel Pin Diameter0.625 in (15.875 mm)

Vendor Part Number37936

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
