Cooling System Expansion Tank 1 Quart Capacity

Vehicle Info Needed

MOROSOPART NUMBER: 710-63655

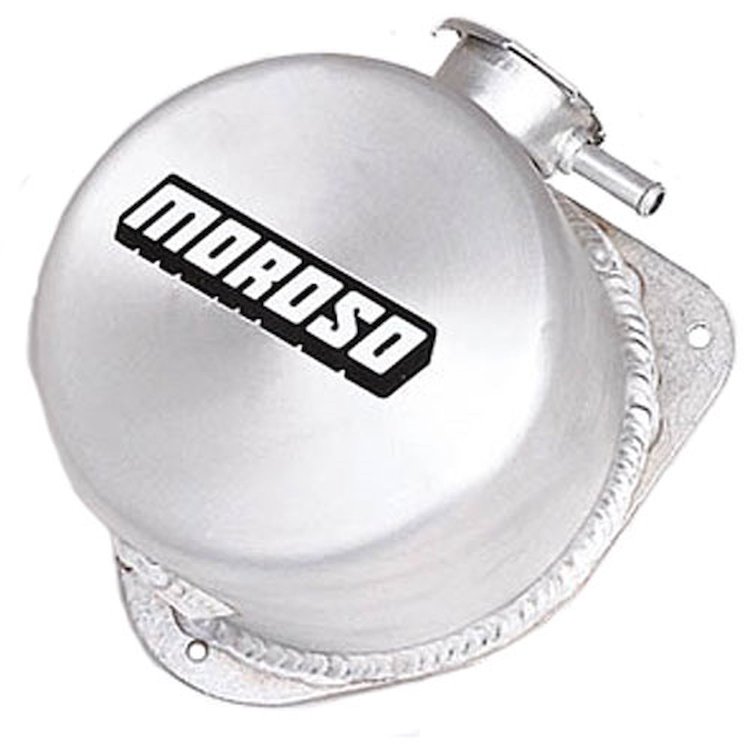

Cooling System Expansion Tank 1 Quart Capacity

Name: Cooling System Expansion Tank 1 Quart Capacity
Brand: MOROSO
SKU: 710-63655
Price: 158.99 USD
Availability: InStock

^$158⁹⁹

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

1 Quart

Cooling System Expansion Tank

1 Quart Capacity

Stamped Neck

This tank comes with a stamped steel filler neck. There is a 1/8 in. NPT overflow fitting at the neck, a 1/4 in. NPT water intake bung and a 1/2 in.NPT bung at the bottom for plumbing a line to the radiator.

Features:

1 quart capacity
Accepts a standard-size radiator cap
Dimensions: 6 1/2 in. H x 7 in. W x 2 5/8 in. D

Part TypeOverflow Tank

BrandMOROSO

Package Height6.5 in (165.1 mm)

Package Width6.75

Package Length13.12

Weight1.3 PG

Part CategoryPerformance Parts

Overflow Tank MaterialAluminum

Outlet Size1/2 NPT

ShapeRound

Drain Valve IncludedNo

Capacity (Qt.)1

Outlet QuantityOne

QuantitySold individually

Mounting Hardware IncludedNo

Overflow Tank MountingBolt-in

Inlet AttachmentFemale Threads

Inlet Size (In.)1/4 NPT

RecirculatingYes

Outlet AttachmentFemale Threads

Overflow Tank FinishNatural

VentedNo

Inlet QuantityOne

Part FitmentUniversal

Diameter7 in (177.8 mm)

Vendor Part Number63655

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
