Vehicle Info NeededMOROSOPART NUMBER: 710-63859

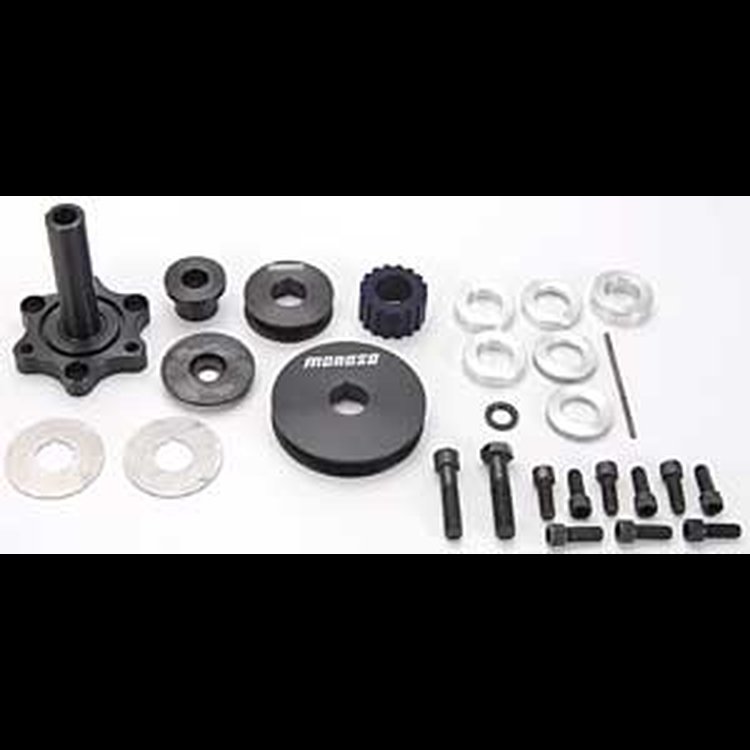

Drive Mandrel Small Block Chevy
$36999
2 left in stock
Ships Today
Lowest Price GuaranteeVacuum Pump/Oil Pump Drive Mandrels
- Drive Mandrel
- Small Block Chevy
- Vacuum Pump and Dry Sump/External Oil Pump
- 3-Bolt, 3.20" Bolt Circle
- 4.655" Length
Includes: - One-piece forged steel mandrel
- 4" V-belt pulley for Alternator
- 2.5" V-belt pulley for Vacuum Pump
- 1" Gilmer pulley for External Oil Pump
- Guide plates, assorted spacers, belt guides and hardware
Features: - Flange style bolts to harmonic balancer- Does not need to be drilled like older designs
- Pulleys are 6061-T6 aluminum hard coat anodized and mandrel is black oxide for exceptional strength and extended service life
- Centers off of I.D. of balancer via supplied crankbolt washer
Note: For 1/4" thick crank trigger wheels, use 710-63861 Drive Mandrel Spacer
Part TypeDrive Mandrel
BrandMOROSO
Package Height4.2
Package Width4.3
Package Length11.6
Weight5.25 PG
Part CategoryAccessories
Accessory Drive Kit TypeVacuum pump/Dry sump
Mandrel MaterialAluminum
Gilmer Pulley IncludedYes
V-Belt Pulley IncludedYes
Pulley FinishBlue anodized
Harmonic Balancer Bolt IncludedNo
QuantitySold individually
Mandrel FinishNatural
Part FitmentSemi Universal
Pulley MaterialAluminum
Self-Centering Mandrels IncludedNo
Vendor Part Number63859
Package Qty1
Package TypeEA
