Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-708120-6

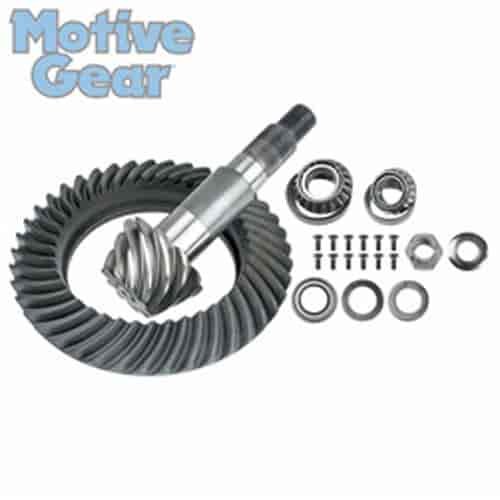

Ring And Pinion
$1,13596
Ships on 09/14/2026
Lowest Price Guarantee- Ring And Pinion
- Dana 80
- 4.10 Ratio
- Incl. Gasket/Ft./Rr.
- Pinion Brgs./Ring Gear Bolts/Seal/Shims/Nut//Washer/Slinge/Baffle
- 8620 Material
- Heat Treated
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.5
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity41
Differential Carrier Break4.10 and Higher
Cover Bolt Quantity10
Pinion Spline Count37
Ring Gear Material8620 Steel
Ring Gear Diameter11.25 in (285.8 mm)
Pinion Shaft Diameter2 in (50.8 mm)
Pinion Gear Tooth Quantity10
Axle TypeDana 80
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Vendor Part Number708120-6
Package Qty1
Package TypeEA
