Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

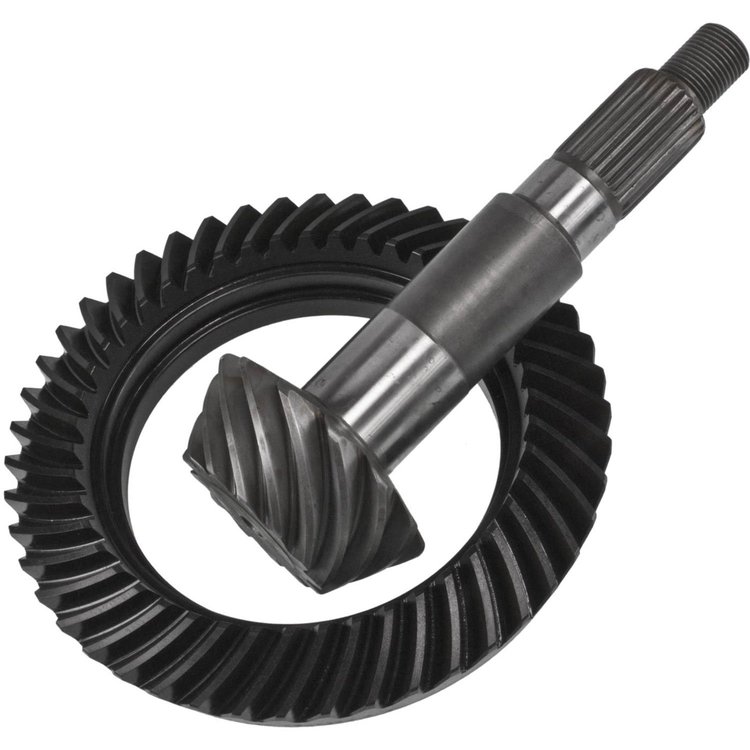

DANA 30
- Ring & Pinion Gears
- DANA 30 Straight Cut Front & Rear
- Ratio: 3.54
- Teeth: 46-13
Specifications:
- Ring Gear Diameter: 7.20"
- 10-3/8" x 20 Hand Threaded Bolts
- Pinion Diameter: 1.376" 26-Splines
- Case: 3.55 & Numerically Lower, 3.73 & Numerically Higher
- 8620 Material - Heat Treated
Applications:
- 1987-87.5 AMC Eagle (front)
- 1967-71 Bronco & U100 (front)
- 2001-On Explorer
- 1987-89.5 Ford Aerostar (rear)
- 1999-On Grand Cherokee WJ (front)
- 1992-96 Grand Cherokee ZJ (front)
- 1967-75 IHC Scout F (front)
- 1972-73 Jeepster (front)
- 1967-74 Jeep C101 F&R (front)
- 1974-86 Jeep CJ5, CJ7F & CJ8 (front)
- 1966-71 Jeep J10 F
- 1972-73 Jeep Wagoneer F
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.5
Weight9.3 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity46
Differential Carrier Break3.54 and Lower
Cover Bolt Quantity10
Pinion Spline Count26
Ring Gear Material8620 Steel
Ring Gear Diameter7.125 in (181 mm)
Pinion Shaft Diameter1.376 in (35 mm)
Pinion Gear Tooth Quantity13
Axle TypeDana 30
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part NumberD30-354
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
