DANA 30

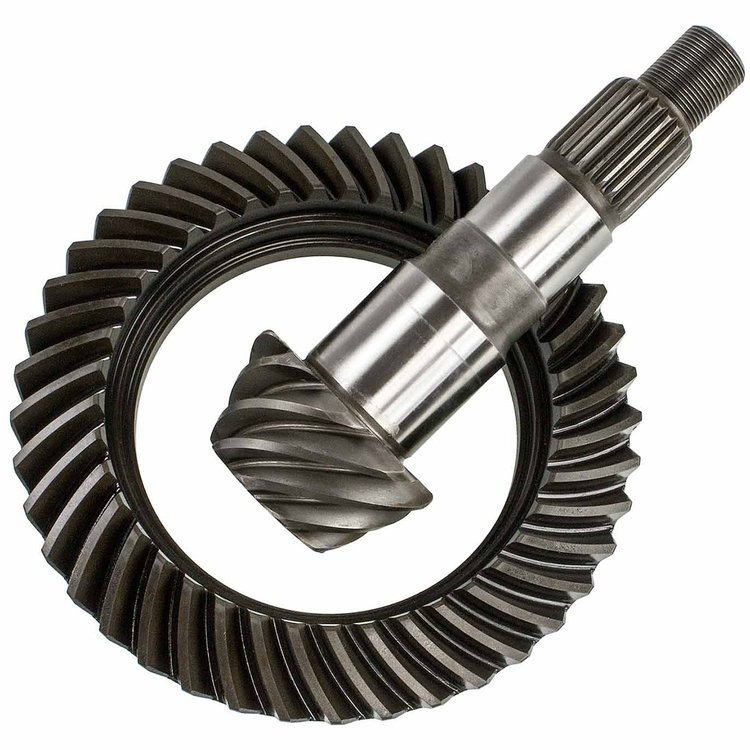

Ring & Pinion GearsDana 30 Front (non-Rubicon) Ratio: 4.56 Teeth: 41-9
The Motive Gear D30-456RJK ring and pinion set is crafted from 8620 Alloy Steel and fits Dana 30 Carriers made for 3.73 and higher gear ratios.
Features:
- Reverse rotation for front differentials
- 1.375 in. diameter pinion shaft with 24 splines
- 7.125 in. ring gear diameter
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.5
Weight9.0 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse
Pinion Gear Teeth9
QuantitySold as a set
Differential Carrier Break3.73 and Higher
Cover Bolt Quantity10
Pinion Spline Count24
Ring Gear Material8620 Steel
Ring Gear Diameter7.125 in (181 mm)
Pinion Shaft Diameter1.375 in (34.9 mm)
Ring Gear Bolts10
Gear Ratio4.56
Ring Gear Teeth41
Part FitmentSemi Universal
Vendor Part NumberD30-456RJK
Package Qty1
Package TypeEA
