Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-D60-513X

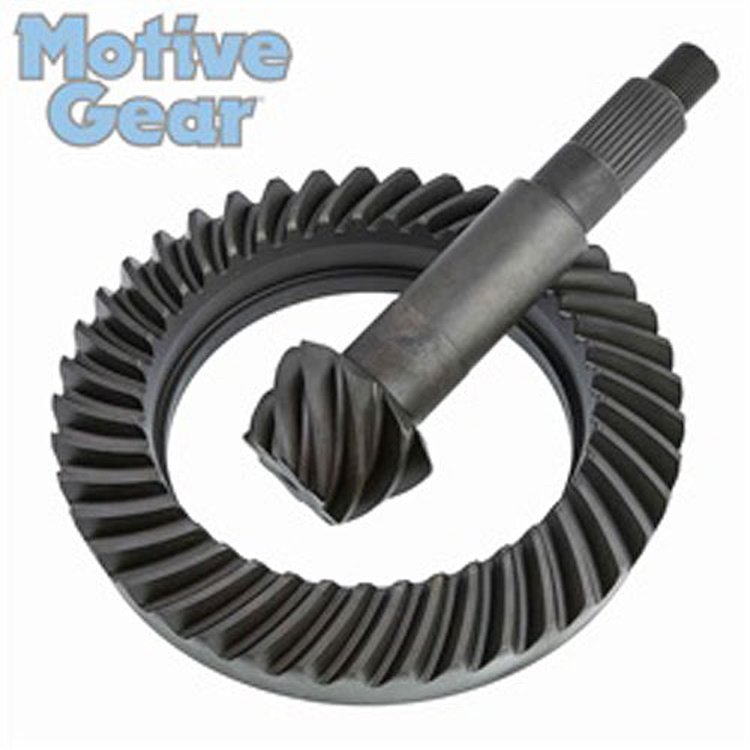

Ring & Pinion Ratio 5.13
$35498
Ships on 09/14/2026
Lowest Price GuaranteeDANA 60
Ring & Pinion Gears Ratio: 5.13 Teeth: 41-8 Thick
- Ring Gear Diameter: 9.75"
- Pinion Diameter: 1.626" 29-Splines
- Case: 4.10 & Numerically Lower
- 8620 Material - Heat Treated
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height5.2
Package Width11.2
Package Length15.1
Weight20.23 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity41
Differential Carrier Break4.56 and Higher
Cover Bolt Quantity10
Pinion Spline Count29
Ring Gear Material8620 Steel
Ring Gear Diameter9.75 in (247.7 mm)
Pinion Shaft Diameter1.626 in (41.3 mm)
Pinion Gear Tooth Quantity8
Axle TypeDana 60
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Vendor Part NumberD60-513X
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
