Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

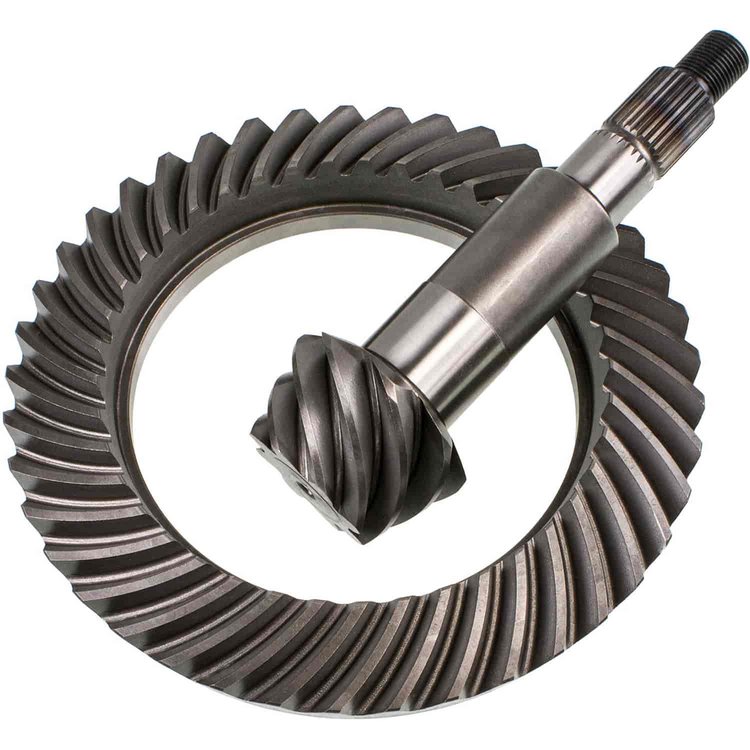

DANA 70
Ring & Pinion Gears Ratio: 5.13 Teeth: 41-8 1/2 in. Offset for 10.5 in. 10-Bolt
Specifications:
- Ring Gear Diameter: 10.50"
- Pinion Diameter: 1.750" 29-Splines
- Case: 4.56 & Numerically Higher
- 8620 Material - Heat Treated
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.5
Weight19.97 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity41
Differential Carrier Break4.56 and Higher
Cover Bolt Quantity10
Pinion Spline Count29
Ring Gear Material8620 Steel
Ring Gear Diameter10.5 in (266.7 mm)
Pinion Shaft Diameter1.75 in (44.5 mm)
Pinion Gear Tooth Quantity8
Axle TypeDana 70
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Offset Measurement.500
Vendor Part NumberD70-513E
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
