Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-GM11.5-488

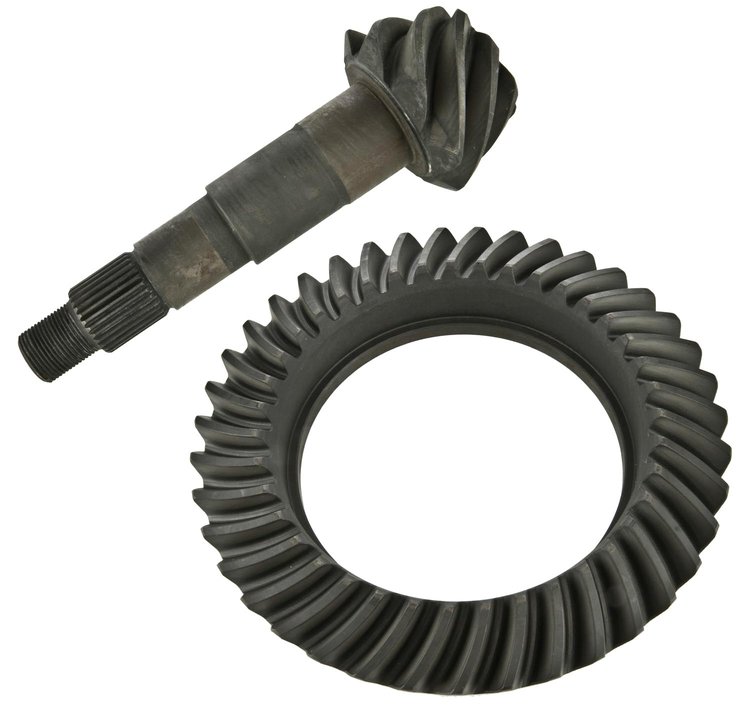

Ring & Pinion Gears Ratio: 4.88
$38098
Ships on 09/15/2026
Lowest Price GuaranteeGM / Chrysler 11.5 in.
Ring & Pinion Gears Ratio: 4.88 Teeth: 39-8
- Ring Gear Diameter: GM/Chrysler 11.5 in.
- Pinion Shaft Diameter: 2.005 in.
- Cover Bolts: 14
- Ring Gear Bolts: 12
- Pinion Spline Count: 30
- Ring Gear Rotation: Standard
Cross References:
- Dorman 697-130
- G2 Axle and Gear 2-2024-488
- SVL 2020657
- USA Standard Gear 36163
- USA Standard Gear ZG GM11.5-488
- USA Standard Gear ZGGM11.5-488
- Yukon Gear 24445
- Yukon Gear YG GM11.5-488
- Yukon Gear YGGM11.5-488
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.5
Weight31.0 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Material8620 Steel
Ring Gear Diameter11.5 in (292.1 mm)
Ring Gear Tooth Quantity39
Pinion Shaft Diameter2.005 in (50.9 mm)
Pinion Gear Tooth Quantity8
Axle TypeGM 11.5 in.
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Cover Bolt Quantity14
Pinion Spline Count30
Vendor Part NumberGM11.5-488
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
