Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-N233-513F

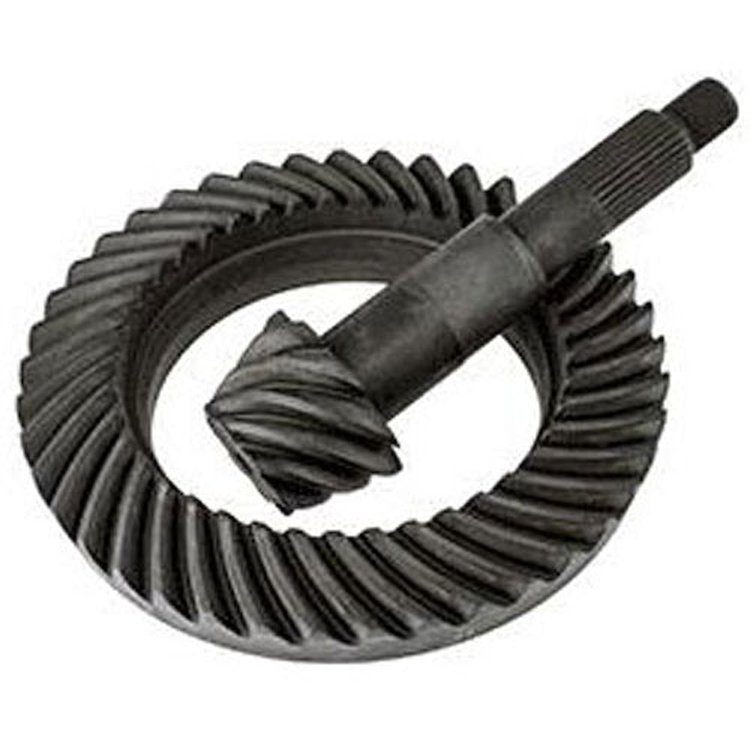

Ring & Pinion Gears for Nissan H233B Front
$20099
Ships on 09/16/2026
Lowest Price GuaranteeNissan H233B
- Ring & Pinion Gears
- for Nissan H233B Front
- Ratio: 5.13
Applications:
- 1987-97 Nissan Patrol/Safari Y60
- 1988-Up Nissan Patrol GU Y61
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.8
Package Width11.0
Package Length15.1
Weight19.3 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse
Ring Gear Material8620 Steel
Ring Gear Diameter8.25 in (209.6 mm)
Ring Gear Tooth Quantity41
Pinion Shaft Diameter1.57 in (39.9 mm)
Pinion Gear Tooth Quantity8
Axle TypeNissan H233B
Ring Gear Bolt Quantity9
Part FitmentSemi Universal
Cover Bolt Quantity11
Pinion Spline Count29
Vendor Part NumberN233-513F
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
