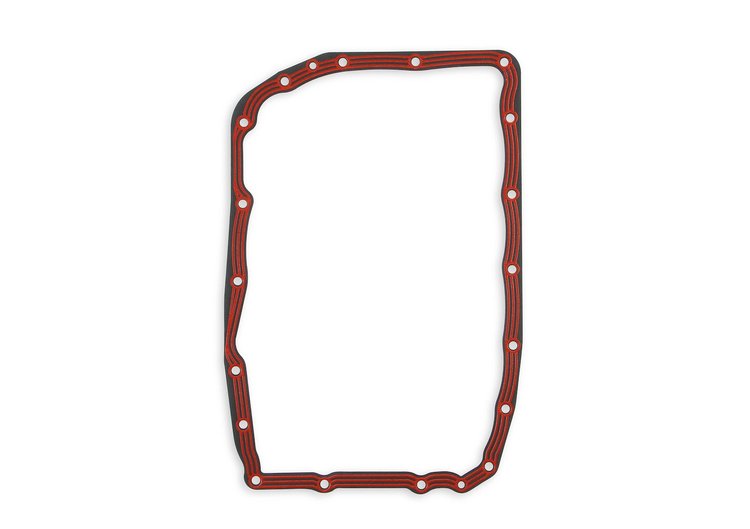

51G07MRG Transmission Pan Gasket for GM 6L80 Transmission

Name: 51G07MRG Transmission Pan Gasket for GM 6L80 Transmission
Brand: MR GASKET
SKU: 720-51G07MRG
Price: 44.39 USD
Availability: InStock

^$44³⁹

1 left in stock

Ships on Nov 02, 2026

Lowest Price Guarantee

Transmission Pan Gasket

GM 6L80 Transmission

Silicone-Rubber w/ Aluminum Carrier

Thickness: .033 in.

Bolt Count: 18

Sold Individually

Mr. Gasket 51G07MRG Features:

Mr. Gasket Transmission Oil Pan Gaskets offer simple, no silicone installation. They use an aluminum carrier, silicone elastomer beading and a rubber-coated binder to create a strong, long lasting seal perfect for the demands of high fluid temperatures created in transmissions. Whether you are sitting in heavy traffic, racing, off-roading or just want a clean garage floor, these premium transmission pan gaskets from Mr. Gasket have you covered.

Requires no silicone for simple installation
Excellent torque retention to prevent possible leaks caused by loosened bolts
Aluminum carrier provides un-matched gasket strength, fit, and durability
Silicone elastomer beading provides a positive seal under severe temperatures and conditions
Rubber-coated sealing binder adds a third layer of protection and aids in the gaskets ability to seal even with small imperfections of mating surfaces

If your transmission is leaking because of a bad pan gasket, replace it with a new one from Mr. Gasket. Choose from either standard or premium gaskets depending on your specific application needs. Each transmission pan gasket is sold individually.

Standard Gaskets: Are precision made from either cork or neoprene material which features excellent compressibility and greater thickness recovery for a positive seal. These gaskets are intended as a one-time use only.

Premium Gaskets: Are precision made with a glass-filled nylon carrier that has molded rubber on both the top and bottom of the gasket. Each bolt hole has a torque limiter that helps to prevent over-torquing. These gaskets are reusable and can be cleaned with soap and water. They are ideal for applications that require frequent service.

Part TypeAutomatic Transmission Pan Gasket

Product LineMr. Gasket Transmission Pan Gaskets

BrandMR GASKET

Package Height0.25

Package Width14.95

Package Length20.8

Weight0.37 PG

Part CategoryPerformance Parts

One-Piece GasketYes

QuantitySold individually

MaterialSilicone-Rubber w/ Aluminum carrier

Part FitmentSemi Universal
