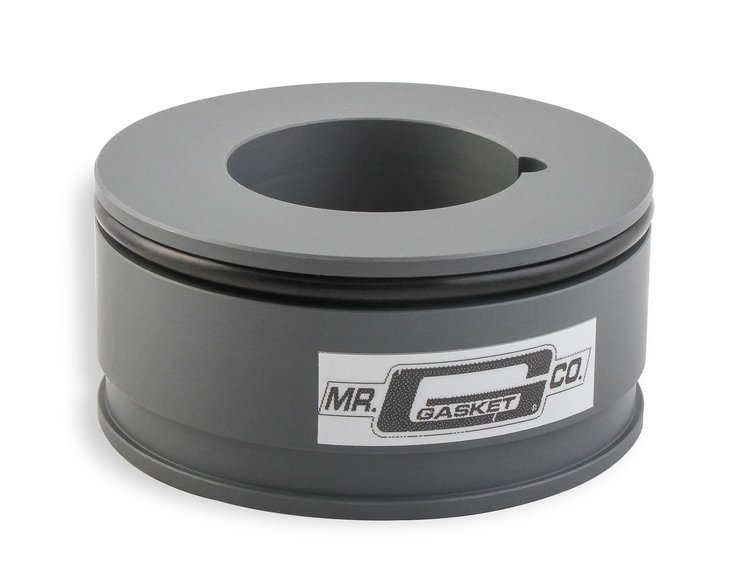

GM LS Front Timing Cover Alignment Tool [Use Without a Seal Fitted in the Cover]
InfoVehicle Info Needed
MR GASKETPART NUMBER: 720-LSTC1

GM LS Front Timing Cover Alignment Tool [Use Without a Seal Fitted in the Cover]

$6044$67.15You Save$6.71
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee
Best Value
Save
$3847
Made in USA
Timing Cover Alignment Tool for GM LS-Based Engines

555-50336

Timing Cover Alignment Tool for GM LS-Based Engines

$2197

Front Cover Alignment Tools
GM LS Front Timing Cover Alignment Tool
  • GM LS Series Engines
  • Centers the Cover on the Crankshaft to Prevent Seal Leaks
  • Also Installs the Front Seal
  • Use Without a Seal Fitted in the Cover
  • Plastic with O-Rings
  • Sold Individually

    GM LS timing covers have no dowel pins, so nothing holds the cover concentric to the crankshaft while you bolt it up. Get it a fraction off centre and the damper seal weeps for the life of the engine. This tool locates the cover on the crank snout first, so the seal runs true.

    Mr. Gasket LSTC1 GM LS Timing Cover Alignment Tool Features:

    • Front cover alignment tool for GM LS series engines.
    • Centers the cover on the crankshaft centerline to avoid seal leaks.
    • Can also be used to install the front seal by lightly tapping the tool with a rubber mallet.
    • Used with no seal fitted in the front cover.
    • Plastic construction with O-rings.
    • Apply motor oil to the O-rings before use to avoid damaging them.
    • Sold individually.

      • These special alignment tools by Mr. Gasket help correct the alignment to the centerline of the crankshaft when installing the front or rear cover on GM LS engines. These tools are made from plastic and allow an easy way to install the front damper and rear main seals correctly to avoid leaks.

      Show More

    Part TypeTiming Cover Installation Tool
    Product LineMr. Gasket LS Engine Cover Alignment Tools
    BrandMR GASKET
    Package Height1.4
    Package Width3.0
    Package Length3.2
    Weight0.3 PG
    Part CategoryAccessories
    QuantitySold Individually
    MaterialPlastic
    Part FitmentDirect Fit
    Vendor Part NumberLSTC1
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
