![HEI Ignition Tune-Up Kit for 1974-1990 Small Block Chevy [Red]](https://www.jegs.com/images/mini_750/100/121/121-1001k.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

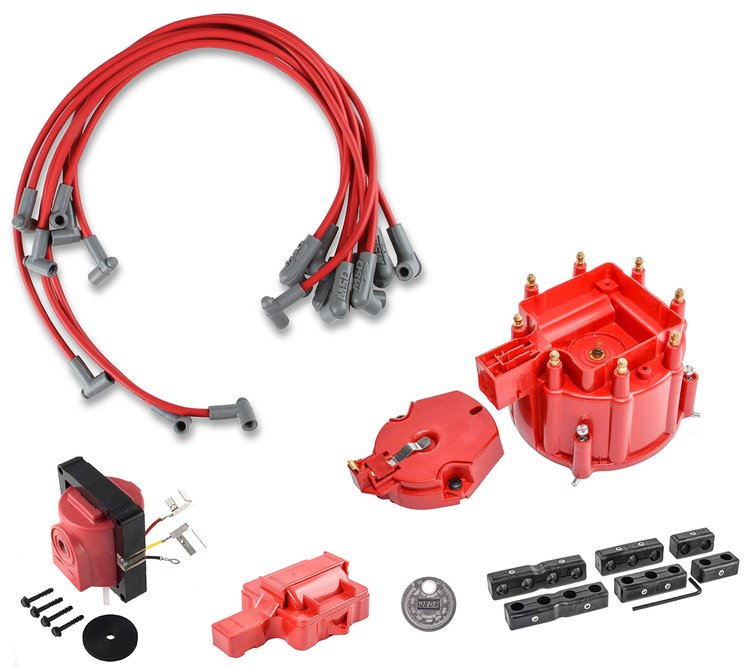

HEI Ignition Tune-Up Kit1974-1990 Small Block Chevy Includes:
- Super Conductor 8.50 mm Spark Plug Wires
- HEI Distributor Cap and Rotor
- HEI Coil
- Coil Dust Cover
- Spark Plug Wire Separators
- Spark Plug Gapper Disc
MSD HEI Ignition Tune-Up Kit Includes:
- (1) MSD Super Conductor 8.50 mm Spark Plug Wire Set, Red - 31359
- (1) JEGS HEI Distributor Cap and Rotor Kit, Red - 40400
- (1) JEGS HEI Ignition Coil, Red - 40115
- (1) JEGS HEI Ignition Coil Dust Cover, Red - 40451
- (1) JEGS Spark Plug Wire Separator Set, Black - 40320
- (1) JEGS Spark Plug Gapper Disc - 80503
Part TypeIgnition Kit
BrandMSD IGNITION
Part CategoryPerformance Parts
Primary Resistance0.600 ohms
AssembledYes
Spark Plug Boot EndsEight 90 degree
Turns Ratio70:01:00
Spark Plug Boot ColorGray
Peak Current200 mA
Mounting Bracket IncludedNo
Inductance3.5 mH
Distributor Terminal EndsMale/HEI
Distributor Boot ColorGray
Secondary Resistance8.9K ohms
Rfi SuppressionYes
Coil Internal ConstructionEpoxy
Boot Type90 Degree
Diameter (Mm)8.5
Distributor Boot MaterialSilicone
Coil Wire AttachmentHEI in-cap
Coil StyleIn-cap
PositionN/A
ColorRed
Wire ColorRed
QuantitySold as a set
Ballast Resistor IncludedNo
Maximum Voltage42,000 V
Coil ShapeSquare
Spark Plug Boot MaterialSilicone
Coil ColorRed
Coil Wire IncludedNo
Spark Duration200 uS
Conductor StyleSpiral core
Part FitmentSemi Universal
Package Qty1
Package TypeEA
