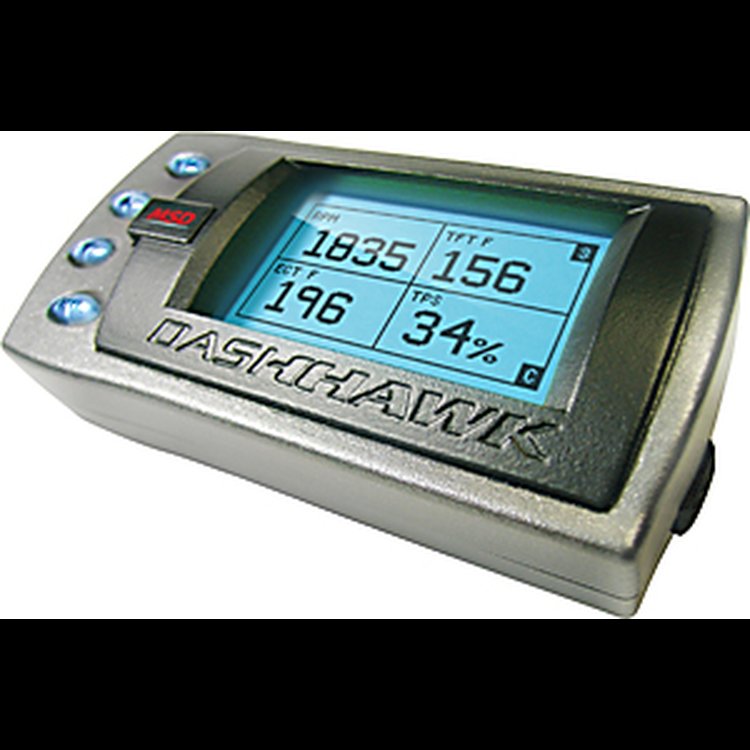

DashHawk Vehicle Information Display

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Predefined "Factory Default" Displays showing OBDII Parameter IDs (PIDs) in an organized fashion.
User defined Displays that can show any supported PID subset in a user chosen format
2 Function Digital (Two large font numeric parameters on your screen)
3 Function Digital (Three medium font numeric parameters on your screen)
4 Function Digital (Four medium font numeric parameters on your screen)
2 Function BAR (Two large font numeric parameters with an updating "Bar" gauge on your screen)
6 Function Digital (Six small font numeric parameters on your screen)
7 Function Digital (Seven small font numeric parameters in a list)
User navigation of displays via the UP and DOWN keys
Real-Time Fuel System Status (on Vehicles that support Fuel System Reporting)
Menu timeouts when no key presses are detected (which returns the user to the previously selected display)
Variable polling schedules for PIDs to reduce CAN bus load
Data Logging capability (on-board) that can be uploaded to a PC via the USB connection
The device is updatable via the USB connection and downloads / software from MSD
LED backlight color is user customizable
User selectable/changeable Alerts
0-60 Times with Speed and RPM recorded
1/4 mile Times/ET (with 60 ft and 1/8 mile splits) with Speed, RPM and Two O2 inputs recorded
0-60, 1/4 mile, and Data Logging data can be uploaded to a PC via the USB connection
Universal Parameters
Calculated Engine Load
Engine Coolant Temp (ECT)
Short Term Fuel Trim Bank 1
Short Term Fuel Trim Bank 2
Long Term Fuel Trim Bank 1
Long Term Fuel Trim Bank 2
Fuel Pressure (KPA)
Manifold Absolute Pressure (MAP)
Engine RPM
Vehicle Speed
Timing Advance (Spark)
Intake Air Temp (IAT)
Mass Air Flow (MAF)
Absolute Throttle Position
O2 Bank 1 Sensor 1
O2 Bank 1 Sensor 2
O2 Bank 1 Sensor 3
O2 Bank 1 Sensor 4
O2 Bank 2 Sensor 1
O2 Bank 2 Sensor 2
O2 Bank 2 Sensor 3
O2 Bank 2 Sensor 4
Relative Fuel Pressure
Diesel Fuel Pressure
Commanded EGR Duty Cycle
EGR Error
Commanded EVAP Purge Duty Cycle
Fuel Level
Evap Vapor Pressure
Barometric Pressure
Catalyst Temp Bank 1 Sensor 1
Catalyst Temp Bank 1 Sensor 2
Catalyst Temp Bank 2 Sensor 1
Catalyst Temp Bank 2 Sensor 2
Module Voltage
Absolute Load
Commanded Equivalence Ratio
Relative Throttle Position
Ambient Air Temp (AAT)
Absolute Throttle Position B
Absolute Throttle Position C
Absolute Pedal Position D
Absolute Pedal Position E
Absolute Pedal Position F
Commanded Throttle Actuator
GM Enhanced Parameters
BLM Cell #
Torque Management Spark Retard (Shift)
Commanded A/F Ratio
Knock Retard
Cylinder That Knocked
Learned Spark
Oil Pressure (new in v1.0.2!)
Calculated Vacuum (GM)
Calculated Air Flow (GM)
Current Misfire Cyl 1 (GM)
Current Misfire Cyl 2 (GM)
Current Misfire Cyl 3 (GM)
Current Misfire Cyl 4 (GM)
Current Misfire Cyl 5 (GM)
Current Misfire Cyl 6 (GM)
Current Misfire Cyl 7 (GM)
Current Misfire Cyl 8 (GM)
Total Misfires (GM)
History Misfire Cyl 1 (GM)
History Misfire Cyl 2 (GM)
History Misfire Cyl 3 (GM)
History Misfire Cyl 4 (GM)
History Misfire Cyl 5 (GM)
History Misfire Cyl 6 (GM)
History Misfire Cyl 7 (GM)
History Misfire Cyl 8 (GM)
Misfire Cycles (GM)
Desired Throttle Position (GM)
Pedal Rotation (GM)
Fan Speed (GM)
Desired Fan Speed (GM)
Fan Speed Error % (GM)
Command Fans 1, 2, 3 ON/OFF
Command Fuel Trim Reset
Command Crank Angle Sensor Error (CASE) Relearn
Ford Enhanced PID's
Engine Oil Temp
Trans Fluid Temp
Cylinder Head Temp
Fuel Pressure
Torque Converter Slippage
Pedal Position
Dodge/Chrysler (DCx) Enhanced PID's
Knock Sensor 1 Voltage
Knock Sensor 2 Voltage
Spark Retard (Knock Retard)

Keep a sharp eye on your vehicle's performance and vitals with MSD's new information display, the DashHawk! Your vehicle's computer contains a wealth of information and the DashHawk lets you tap into it all!With the DashHawk, you can truly understand how your vehicle is performing -which means you can drive more fuel efficiently on the road, race faster at the track, and spot maintenance issues before they leave you stranded. Since the DashHawk saves and records maximum values (password protected), you can also see how someone else has driven your car when you are not behind the wheel. The DashHawk displays all this information the way you want to see it, either as a bar graph or digitally.Simply connect the DashHawk to the diagnostic port and you have access to over 100 parameters on 11 separate screens. Navigation through the screens is as simple as the push of a button. Values such as speed, engine rpm, oil pressure, coolant, oil and transmission temps, throttle position, engine load and a host of other parameters can all be viewed via the DashHawk.As if all of that information isn't enough, the DashHawk will also record 0-60 mph times and even quarter mile times! All of this information can be recorded (up to 90 seconds) and then downloaded to a PC. Once downloaded, you can graph the information using the software supplied.Unlike conventional analog gauges, the DashHawk provides the ability to set both visible and audible alerts when a parameter such as speed or coolant temp reaches a certain value. Set alerts on rpm and the DashHawk also functions as an incredibly precise shift light. The unit can be used as a diagnostic tool by displaying trouble codes (along with a description of each code so you know exactly what the problem is). The DashHawk gives you the ability to clear the code and see if it comes back, which can save a costly trip to the dealer. There's no need to worry about the DashHawk becoming obsolete either. With a simple Internet connection, MSD will be able to update your DashHawk with the latest vehicles and updated features.

Some DashHawk Features are:
