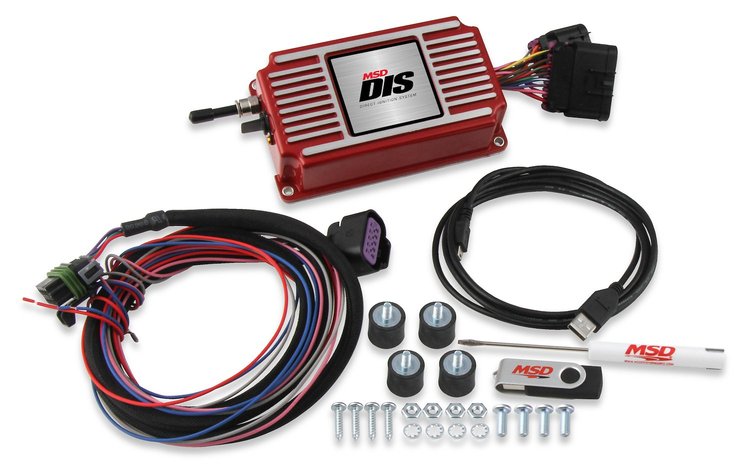

MSD DIS Direct Ignition System Control Box - Red

MSD 6015MSD Features:

Modern Firepower for your classic - the MSD Direct Ignition System, or DIS, converts an early style engine from a conventional distributor and single coil setup to eight individual coils. One coil per cylinder means no moving parts in a distributor to control the timing and no cap and rotor to wear-out.Timing is digitally controlled ensuring precision accuracy at all RPM's and every firing. The DIS has advanced timing and rev-limiter functions for racers such as individual cylinder timing; timing retards for boosted and nitrous applications, a two-step rev-limiter, and launch control to get your car out of the hole and even data acquisition to keep everything in check.Convert your early Chevy, Ford or Mopar by replacing the worn out distributor with an MSD Pro-Billet Dual Sync Distributor and blank cap. The Dual Sync plugs directly into the 6015MSD DIS Ignition control providing the cam and crank signals. The DIS then plugs into a set of GM smart coils, a.k.a. LS coils, and just like that, your early bullet has modern firepower.

• Fully Programmable 2D and 3D Timing maps provide complete timing control
• Individual Cylinder Timing (ICT) allows precise tuning
• Easily convert to a Coil-Per-Plug ignition system
• Preprogrammed timing maps
• Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
• Fully potted electronics and sealed connectors for maximum durability

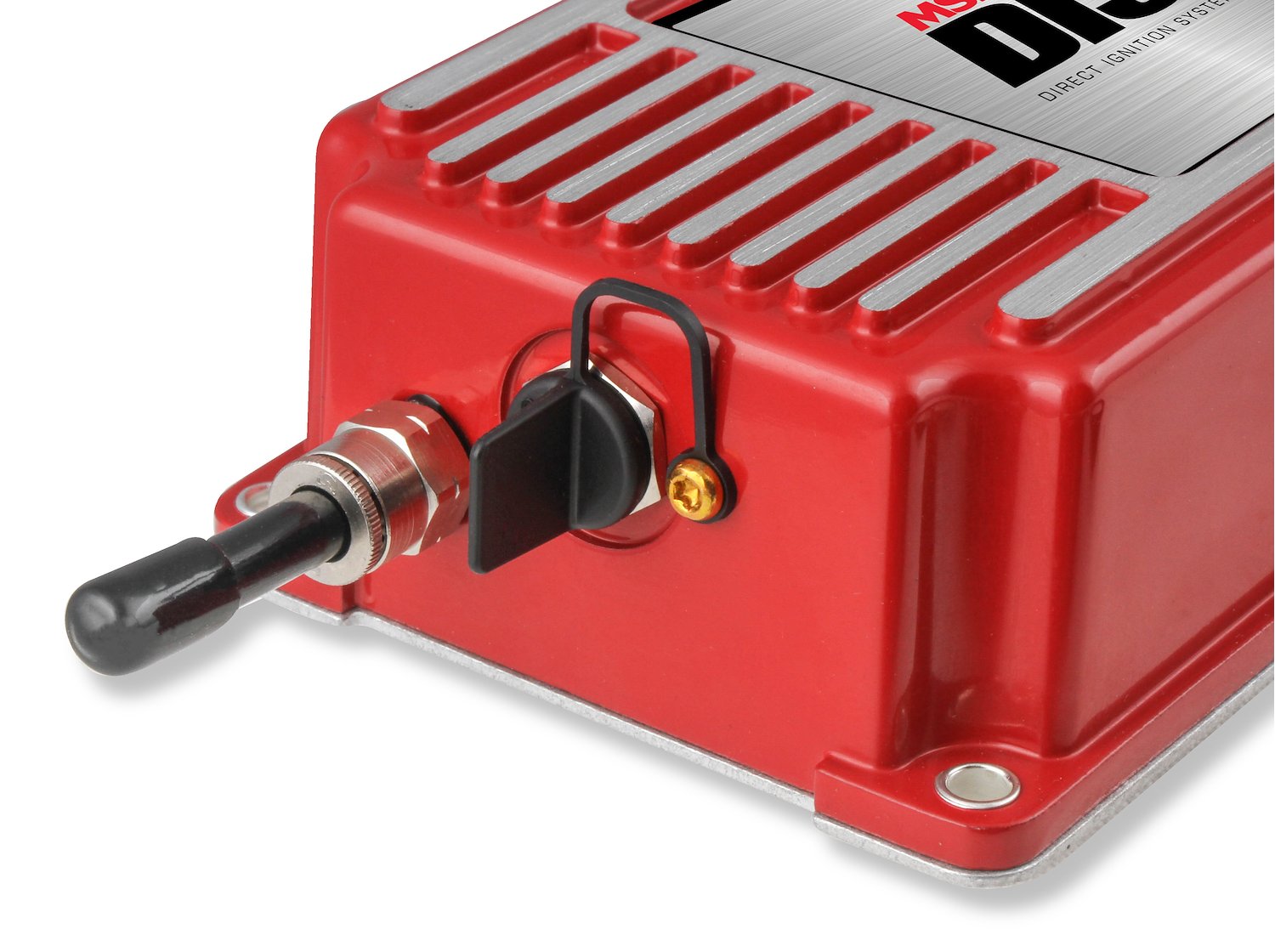

• Easily programmable through a Mini-USB communication port
• Programmable Max Rev and Launch RPM limiters provide engine protection
• Consistent holeshots thanks to a Programmable Launch Timing Retard
• Single Timing Step Retard ideal for pulling timing for nitrous applications
• Data acquisition allows you to keep an eye on all aspects of the ignition
• Optional temperature sensor input to control timing based on temperature
• Complete kits with all required components available

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
