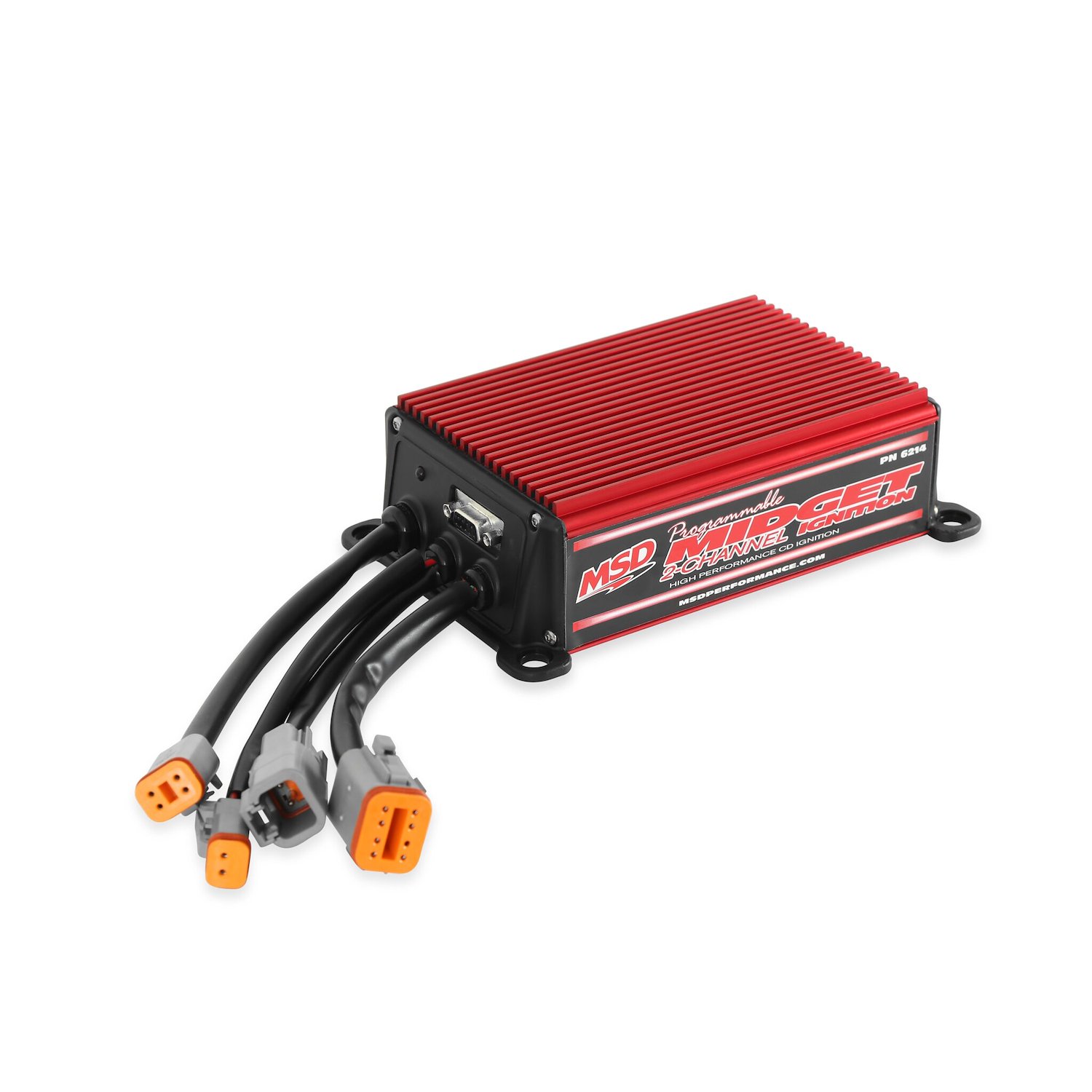

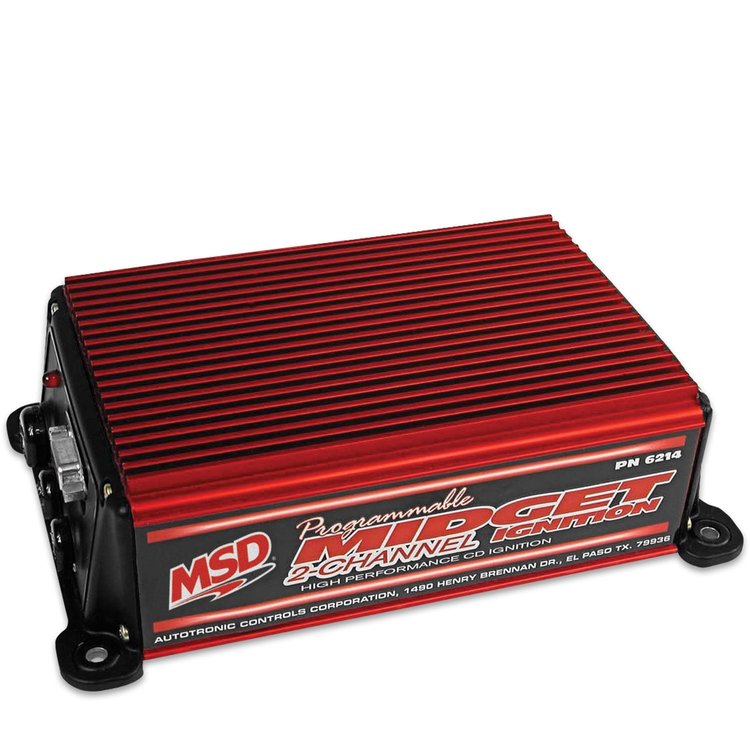

Midget DIS-2 Programmable Race Ignition
• Two Timing Curves
• Rev Limit
• Start Retard
• Battery Monitor

  The Midget DIS-2 Programmable Race Ignition is a complete electronic distributorless system consisting of a powerful capacitive discharge Ignition Control, a 4-tower high output coil pack (purchased seperately) and uses (2) non-magnetic pick-ups with a trigger wheel as a crank trigger source to produce exact ignition timing.By using the optional Hand Held Programmer, PN 121-7550, or MSD's Pro-Data+ software package on a Windows based PC, racers can program two different timing curves down to .1° per 100 rpm increments.
  Features:
• Plot (2) timing curves ranging from 800-15,000 rpm in 0.1° increments
• Program a start retard to ease cranking
• Select a rev limit from 2,000-15,000 rpm in 100 rpm increments
• A battery monitor circuit shows real time battery voltage and a low voltage time percentage
• Switch between (2) timing curves as track conditions change during a race

  Note: Crank trigger wheel must be fabricated for each application. Coil Pack 121-8240 is sold separately.
• Plot two timing curves ranging from 800-15,000 rpm in 0.1 degrees increments
• Program a start retard to ease cranking
• A battery monitor circuit shows real time battery voltage and a low voltage time percentage
• Switch between two timing curves as track conditions change during a race

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
