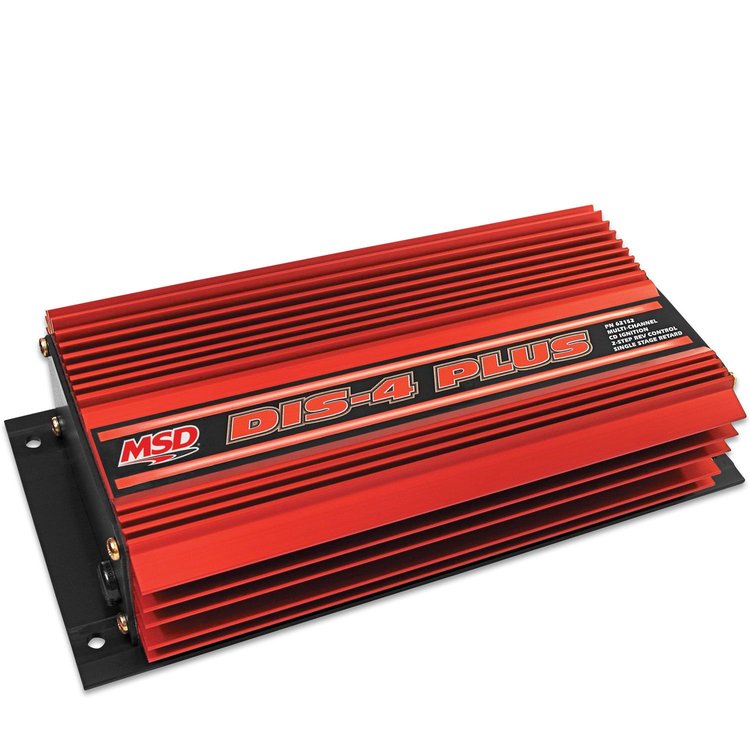

Features:

• Settings are Adjustable with Rotary Switches
• For use on 6 or 8-cylinder engines with two, three or four coil packs
• Two Step Rev Control
• Step Retard
• LED Monitor
• EO # D-115-25
• Non-OBD II Approved via Carb E.O. D-40-31

Operating Specifications

• Spark Energy: 105-115 mJ per spark
• Primary Voltage: 460-480 volts
• Secondary Voltage: 40,000 volts
• Spark Series Duration: 20° crankshaft rotation
• RPM Range: 14,000 RPM with 14.4 volts
• Voltage Required: 10-18 volt (Negative Ground)
• Current Draw: 6.6 amp per 10,000 RPM
• Size: 9.5" L x 4.5" W x 2.2" H
• Weight: 4.5 lbs

Fits Applications Revisions:

• Plymouth Grand Voyager Base 1990-2000
• Plymouth Voyager Base 1991-2000

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-115-25
