Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

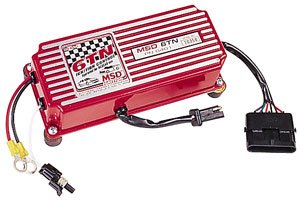

- 6TN Circle Track Ignition Control
- With NASCAR-approved connectors
FEATURES - Designed with Circle Track racing in mind
- Special 4-wire connector to plug into an MSD Soft Touch Rev Control (rev control not included)
- NASCAR-approved (20-6.1) due to weathertight Deutsch connectors
- Correct connector forms a positive-locking, sealed connection
- Sturdy vibration mounts
- Cast aluminum housings provide a solid mounting foundation for circuit board and transformer
- 2-part silicone elastomer encases circuit board making it impossible for parts to vibrate loose
OPERATING SPECIFICATIONS
Spark Energy: 105 to 115 mJ (per spark)
Primary Voltage: 460 to 480 volts
Secondary Voltage: 45,000 volts (Tested with Blaster Coil)
Spark Series Duration: 20° crankshaft rotation
RPM Range: 15,000 RPM with 14.4 volts
Voltage Required: 12 to 18 volts (negative ground)
Current Draw: 1 amp per 1000 RPM
Dimensions & Weight: 8" L x 3.5" W x 2.25" H, 4.7 lbs
Part TypeIgnition Box
BrandMSD IGNITION
Package Height2.9
Package Width7.8
Package Length11.0
Weight4.35 PG
Part CategoryPerformance Parts
Ignition Box OutputCapacitive discharge
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
