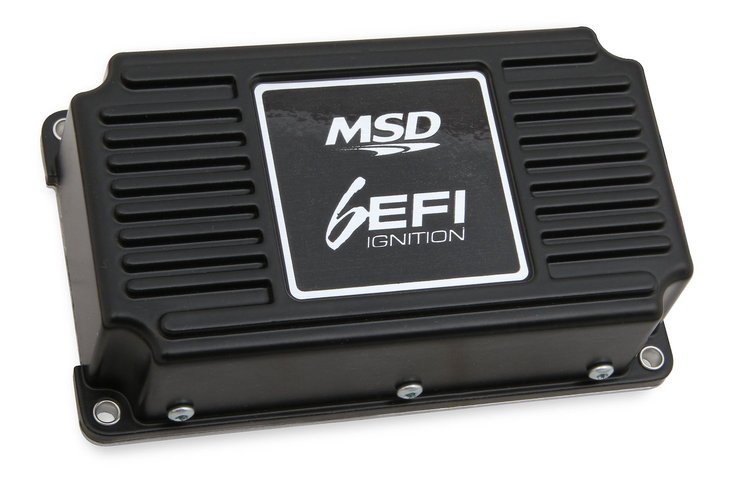

Vehicle Info Needed6EFI Ignition Control Universal
Ships Today
Lowest Price GuaranteeIn all 50 states, this MSD 6EFI ignition control box is legal for sale and use on emissions-controlled vehicles when used in accordance with CARB EO: D-115-26.
- Current Draw: .700 Amp per 1,000 RPM
- Primary Voltage: 435 Volts
- RPM Range: 15,000 RPM with 14.400 Volts
- Secondary Voltage: 43,000 Volts
- Spark Energy: 95 mJ per spark
- Spark Series Duration: 20-Degrees Crankshaft Rotation
- Voltage Required: 10-18 Volts, Negative Ground
- Weight and Size: 1.500 lbs., 6 in. L x 3.500 in. W x 1.750 in. H
Make Your EFI System Come Alive
If you are using a distributor-based ignition with your aftermarket electronic fuel injection (EFI) system, MSD's 6EFI Ignition Control is the perfect addition to your fuel-injected engine. The 6EFI Ignition Control works with a variety of EFI systems and is designed with capacitive discharge technology for increased throttle response, smooth idle, quick starts, and full ignition power throughout the RPM range. The unit comes with detailed wiring instructions for easy installation.
Show More
Features:
- For Use With EFI Systems
- Detailed Installation Instructions
- Capacitive Discharge Technology
- Compact Design

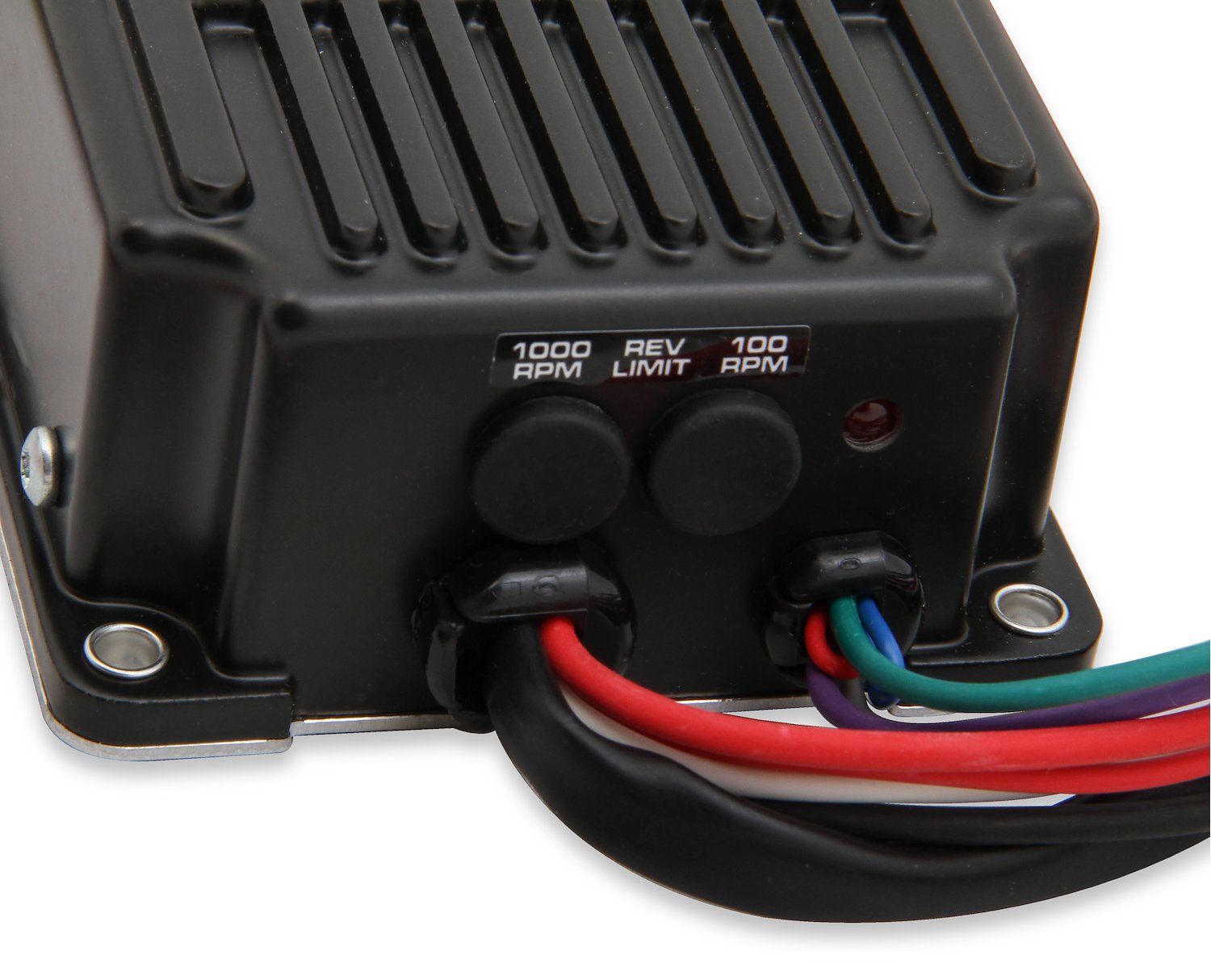

- Built-in Rev Limiter
- Works on 12V Electrical Systems Using a Distributor
- Connects to Magnetic Pickup, Electronic, & Points Distributors
Emission Code 1: This part is legal for use on Emissions Controlled Vehicles when used in accordance with the manufacturer's application guide because it has a California Air Resources Board Executive Order number or is a direct or consolidated replacement part.
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
