Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

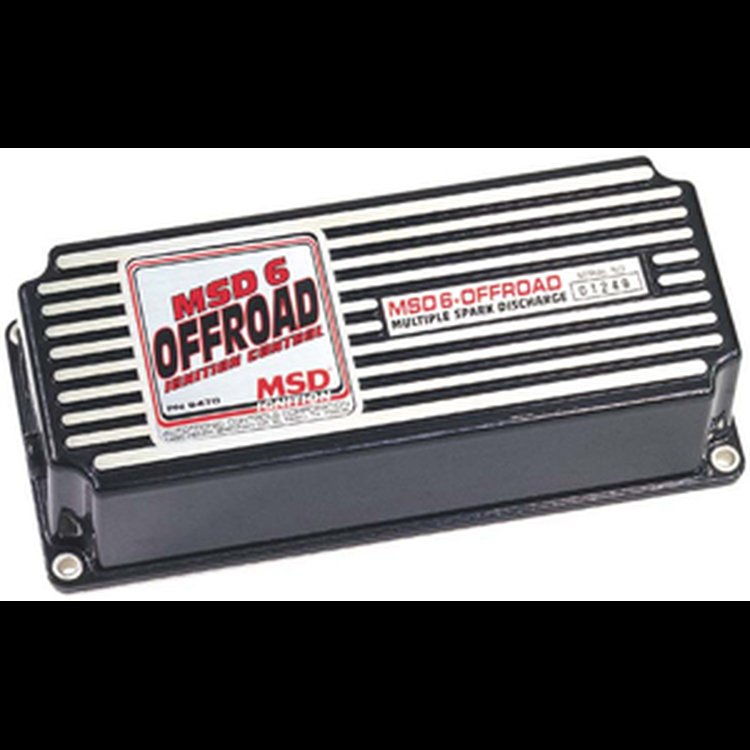

- 6-Offroad Ignition Control
- CARB E.O Number D-40-26
MSD 6-Offroad Ignition Control FEATURES - Designed especially for heavy-duty off-road use
- Completely potted with an epoxy compound to encase the unit for a water and vibration proof ignition
- Weathertight connectors provide positive locking and additional water resistance
- 50-state legal via EO #D-40-26
OPERATING SPECIFICATIONS
Spark Energy: 105 to 115 mJ (per spark)
Primary Voltage: 460 to 480 volts
Secondary Voltage: 45,000 volts (Tested with Blaster Coil)
Spark Series Duration: 20° crankshaft rotation
RPM Range: 15,000 RPM with 14.4 volts
Voltage Required: 12 to 18 volts (negative ground)
Current Draw: 1 amp per 1000 RPM
Dimensions & Weight: 8" L x 3.5" W x 2.25" H, 3.5 lbs
Part TypeIgnition Box
BrandMSD IGNITION
Package Height2.8
Package Width8.0
Package Length11.0
Weight5.75 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
