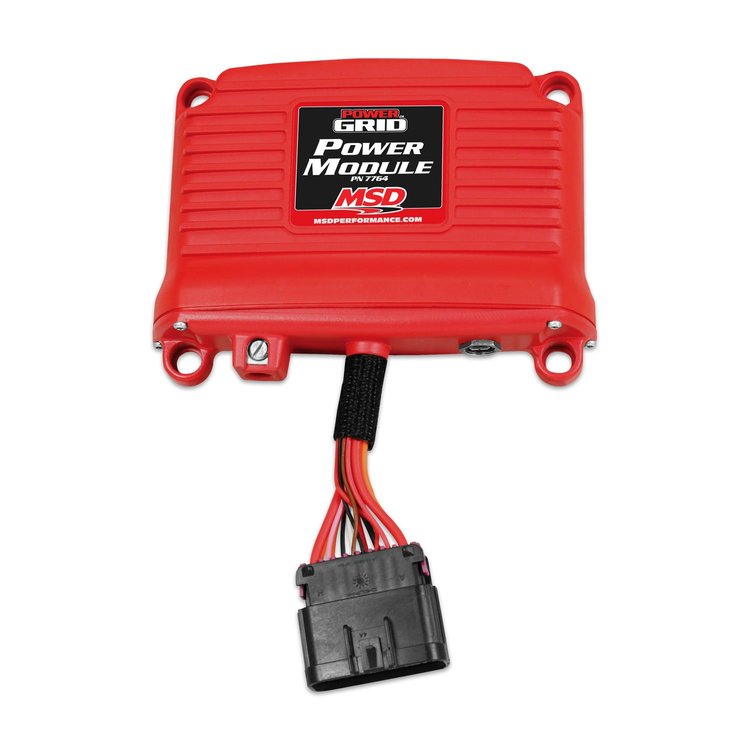

Power Grid Power Module

Name: Power Grid Power Module
Brand: MSD IGNITION
SKU: 121-7764
Price: 718.95 USD
Availability: InStock

^$718⁹⁵$799.95You Save$81.00

Ships on 09/04/2026

Lowest Price Guarantee

Power Grid Power Module

Power Grid Power Module
Red
Can Be Used To Activate Fan
Fuel Pump
NOS System
Throttle Stop
Data Logs All Functions When Connected To Power Grid
Power Grid Data Logger
Takes the place of 4 electromechanical relays
Built-in overcurrent protection, no fuses needed
80 Amp capacity, 4 channels rated up to 20 Amps each
Each channel is controlled via input wires or as programmed in the MSDView software
Can be used stand alone or with MSD Power Grid PN 7730
Trigger signals can include power, ground, temperature, or time
Data Acquisition available when used with MSD Power Grid

Part TypeRelay

BrandMSD IGNITION

Package Height5.4

Package Width9.5

Package Length12.4

Weight3.35 PG

Part CategoryPerformance Parts

ColorRed

QuantitySold Individually

Channel Count4

Part FitmentSemi Universal

Data AcquisitionYes

Relay Amperage20

Vendor Part Number7764

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
