Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-8106

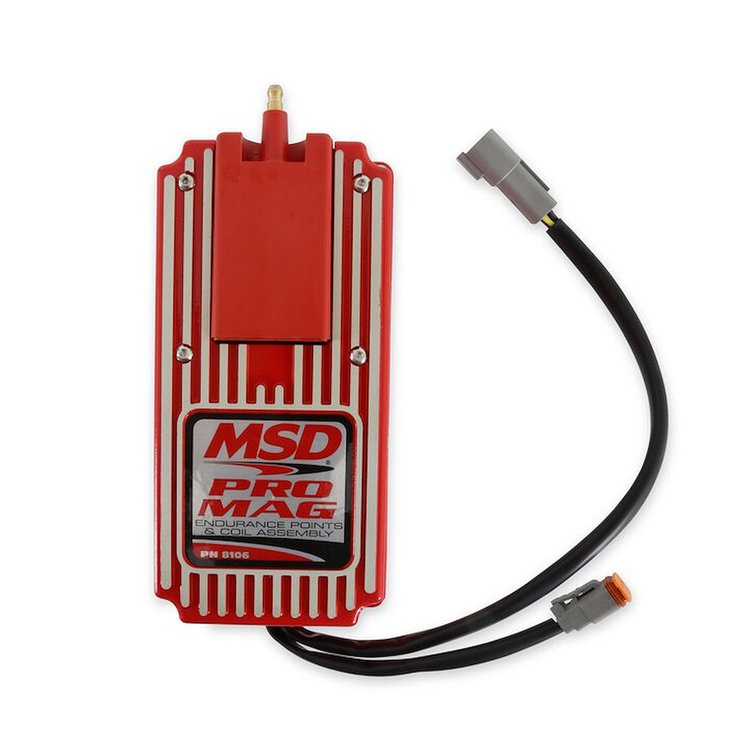

Pro Mag 12 Points Box With Rev Limiter
$89895$999.95You Save$101.00
1 left in stock
Ships Tomorrow
Lowest Price GuaranteePro Mag 12 Points Box
- Pro Mag 12 Points Box
- With Rev Limiter
- With Ignition Coil
- Endurance Use
MSD Electronic Points Boxe PN 8106 can be used with the Pro Mag 12 generators. The Coil is specifically designed to handle the voltage and current of the Pro Mag and can handle long endurance and marine events as well as drag racing events.
Features: - Recommended for races longer than 50 laps
- Recommended for marine racing
- Requires 200-250 cranking rpm
- Required with a 20 Amp Pro Mag Generator
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

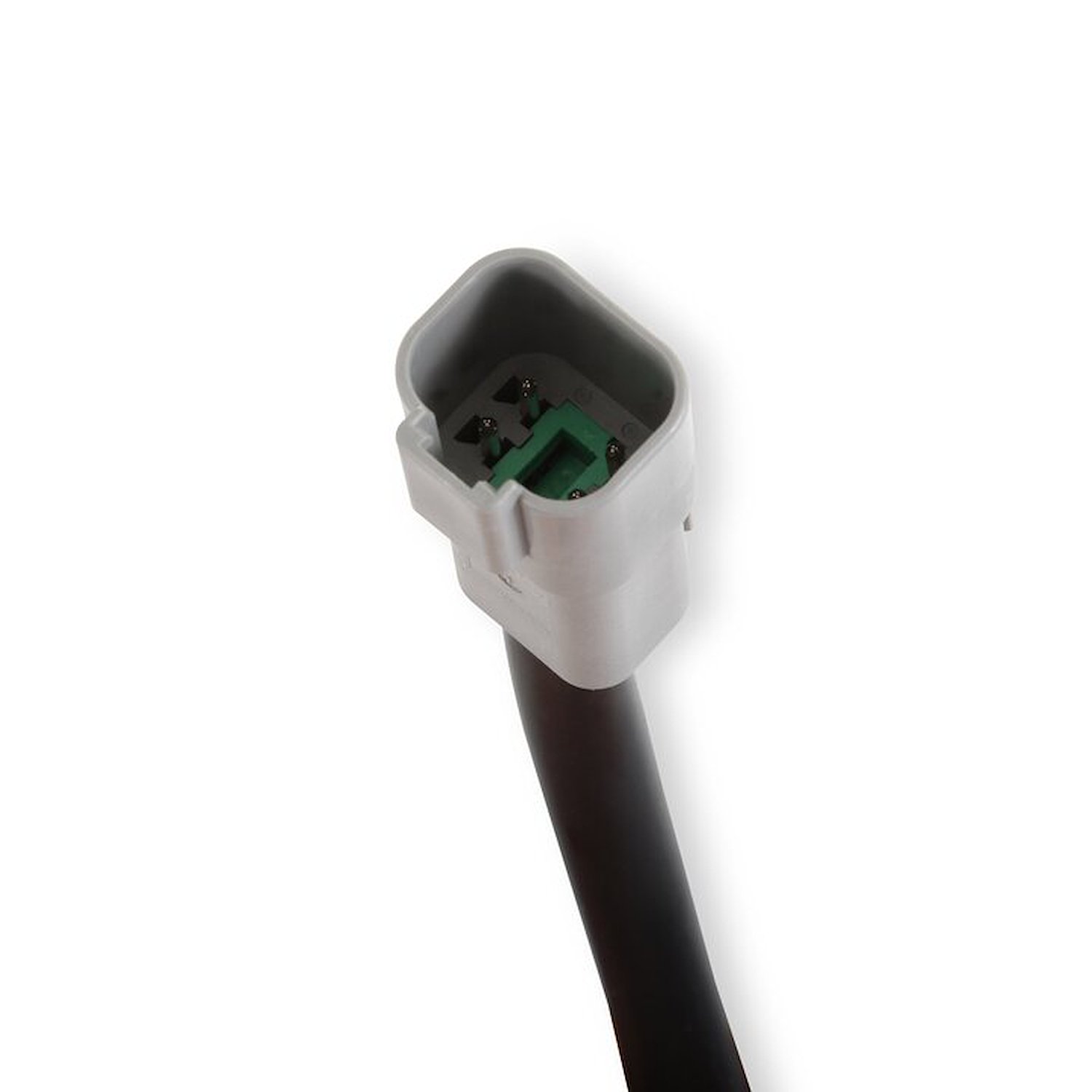

- The MSD Pro Mag Points Box electronic circuitry, which replaces what breaker points attempted to do, releases the power of the Pro Mag generator to the coil instantly and at full power. No other magneto can match the Pro Mag in rise time! The coil instantly produces an incredible shot of voltage to ionize the plug gap then the current takes over ensuring that the nitromethane is ignited! The Electronic Points Box keeps the electricity flowing across the plug for a full 26° of crankshaft rotation ensuring complete combustion. A strong cast aluminum housing provides a solid mounting foundation for all of the electronics as well as a very good heat sink. For protection against 300 mph vibrations, the circuits receive a heavy duty coating of Humi-Seal compound which secures the electronics. Special 4-pin Deutsch connectors lock and seal the wires to the Pro Mag generator. Vibration Mounts are also supplied.
Part TypeIgnition Box
Product LineMSD Pro Mag Points Box
BrandMSD IGNITION
Package Height4.9
Package Width7.3
Package Length10.2
Weight4.67 PG
Part CategoryPerformance Parts
Rev LimiterYes
QuantitySold individually
Ignition Coil IncludedYes
Part FitmentUniversal
RpmOEM
Vendor Part Number8106
Package Qty1
Package TypeEA
