![8142 Pro Mag Ignition Coil, 44 Amp [Red]](https://www.jegs.com/images/mini_750/100/121/121-8142.jpg)
Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-8142
8142 Pro Mag Ignition Coil, 44 Amp [Red]
$1,12395$1249.95You Save$126.00
1 left in stock
Ships Today
Lowest Price Guarantee- Pro Mag Ignition Coil
- Use with MSD Pro-Mag Generator
- 44 Amp
- Red
MSD 8142 Features:
It takes a specially engineered coil to handle the 44 amps supplied by the Pro-Mag generator. This coil steps up the current to as much as 45,000 volts while sending over one amp across the plug gap. This high voltage is required to initialize the spark when it's up against nitro and extreme boost pressures. Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- The Coil of the Pro Mag 44 is designed to handle the 44 amps being pumped into it from the generator and still produce plenty of high voltage. The coil is capable of delivering up to 50,000 volts to the plugs which is responsible for initializing the spark across the plug gap as the long duration energy glows in the cylinder.

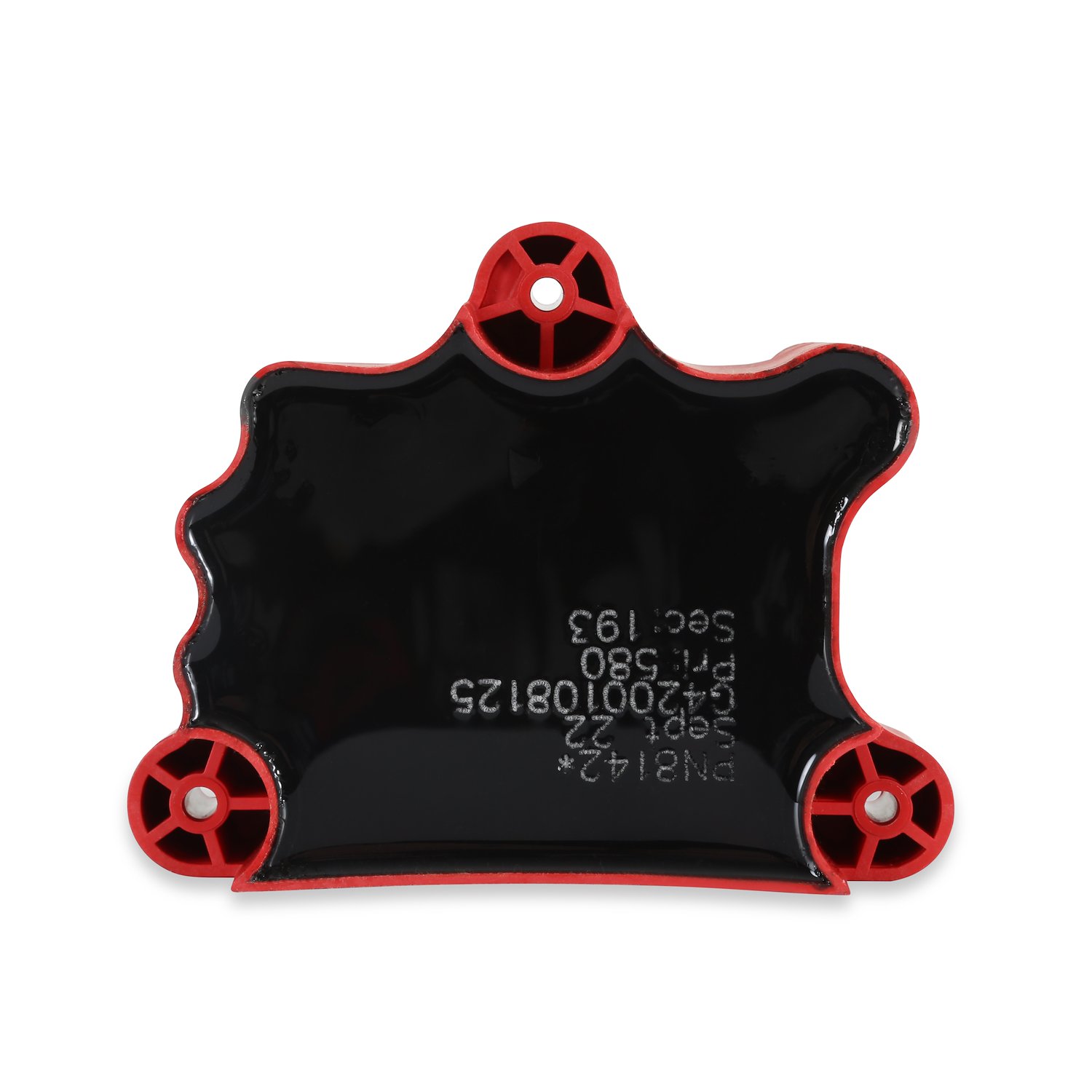

The 44 Coil features over a pound of copper carefully wound around a unique bobbin molded from Dupont Rynite FR946 material. These windings and internals of the coil are completely encased in epoxy for incredible protection against vibration damage and ensure the ultimate in reliability. This entire assembly is housed in a tough plastic molded shell with extremely high voltage isolation characteristics. Brass primary and secondary terminals ensure full voltage delivery and vibration mounts are included.
Part TypeIgnition Coil
Product LineMSD Pro Mag 44 Amp Ignition Coil
BrandMSD IGNITION
Package Height6.5
Package Width7.1
Package Length7.4
Weight4.96 PG
Part CategoryPerformance Parts
Coil Wire AttachmentMale/HEI
Coil StyleMagneto
QuantitySold individually
Overall Length5.5 in (139.7 mm)
Ballast Resistor IncludedNo
Maximum Voltage45,000 V
Peak Current44 amps
Coil ShapeSquare
Mounting Bracket IncludedNo
Coil ColorRed
Coil Wire IncludedNo
Spark Duration26 degrees
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part Number8142
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
