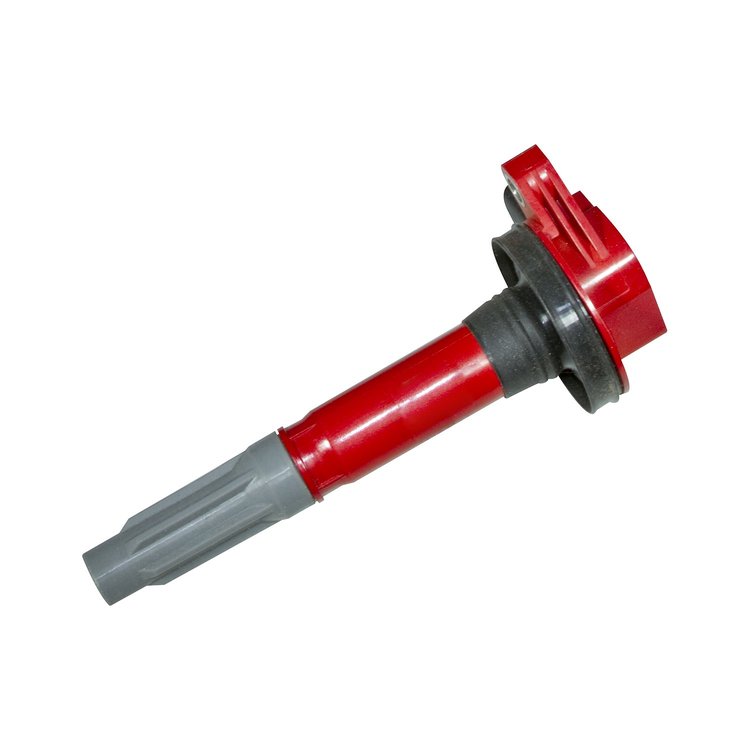

8248 Blaster Coil-on-Plug for 2011-2016 Ford Coyote 5.0L [Red]
InfoVehicle Info Needed
MSD IGNITIONPART NUMBER: 121-8248

8248 Blaster Coil-on-Plug for 2011-2016 Ford Coyote 5.0L [Red]

$6746$74.95You Save$7.49
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Spark Guard Dielectric Grease Resealable Container

MSD IGNITION

Spark Guard Dielectric Grease Resealable Container

Part Number : 121-8804
$4159$46.21
You Save$4.62

2011-16
Blaster Coil-on-Plug
  • 2011-2016 Ford Coyote 5.0L
  • Red
  • Sold Individually

    MSD 8248 Features:

      Specs at 14 Volts
    • Turns Ratio: 80 to 1
    • Primary Resistance: .51 ohms
    • Secondary Resistance: Internal Diode
    • Inductance: 1.9 mH
    • Secondary Current: 100 mA
    • Spark Duration (mS): 120 us
    • Energy: 48 mJ
    • Maximum Voltage: 32KV
    • Improved high rpm operation
    • Patented winding design and materials
    • Direct bolt-in to factory connectors
    • Direct Bolt-In Replacements That Use Factory Connectors

      Designed for Ford coil-on-plug applications, these reliable Blaster Coils improve spark energy, voltage output, and high-RPM operation. They feature patented winding and are legal via CARB E.O. #D-40-42.

      View MSD 6-Mod Ignition Controller and Blaster Coil Tech Article

    Part TypeIgnition Coil
    Product LineMSD Blaster Coils for Ford Modular Engines
    BrandMSD IGNITION
    Package Height2.5
    Package Width6.1
    Package Length9.9
    Weight0.68 PG
    Part CategoryPerformance Parts
    Primary Resistance0.510 ohms
    Coil Wire AttachmentFemale/Socket
    Coil StyleCoil pack
    QuantitySold individually
    Ballast Resistor IncludedNo
    Maximum Voltage44,000 V
    Turns Ratio80:01:00
    Peak Current100 mA
    Coil ShapeSquare
    Mounting Bracket IncludedNo
    Inductance1.9 mH
    Coil ColorRed
    Coil Wire IncludedNo
    Spark Duration1.2 mS
    Part FitmentDirect Fit
    Coil Internal ConstructionEpoxy
    Vendor Part Number8248
    Package Qty1
    Package TypeEA
