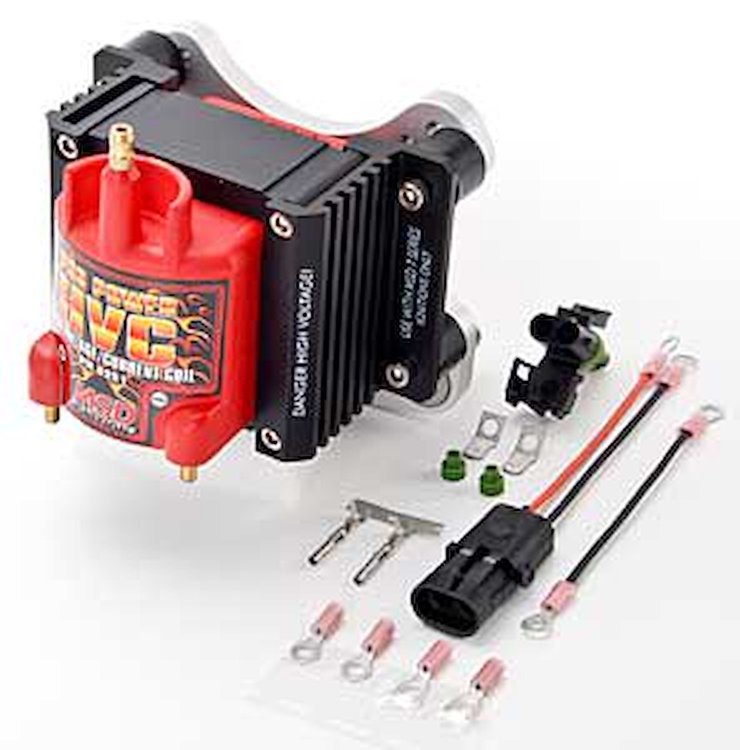

Pro Power HVC Coil & Mount Kit
• Small Block Chevy
  Includes:
• Pro Power HVC Coil
• CSR Head Mount Coil Bracket

  The Pro Power HVC coil is designed for racing applications with an MSD 7 or 8 Series ignition control.

  Coil Specs:
• Turns ratio: 85:1
• Primary resistance: .04 OHMs
• Secondary resistance: 86 OHMs
• Inductance: 1 mH
• Maximum voltage: 45,000 Volts (Tested with 7AL-2 Ignition)
• Peak current: 1.1 Amp
• Spark duration: 150 uS

  Features:


• Efficient E-core winding design produces more voltage and current
• 85:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in red epoxy and secured with extruded brackets
• Spark plug style terminal and threaded brass primary studs
• Supplied with rubber shock mounts

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
