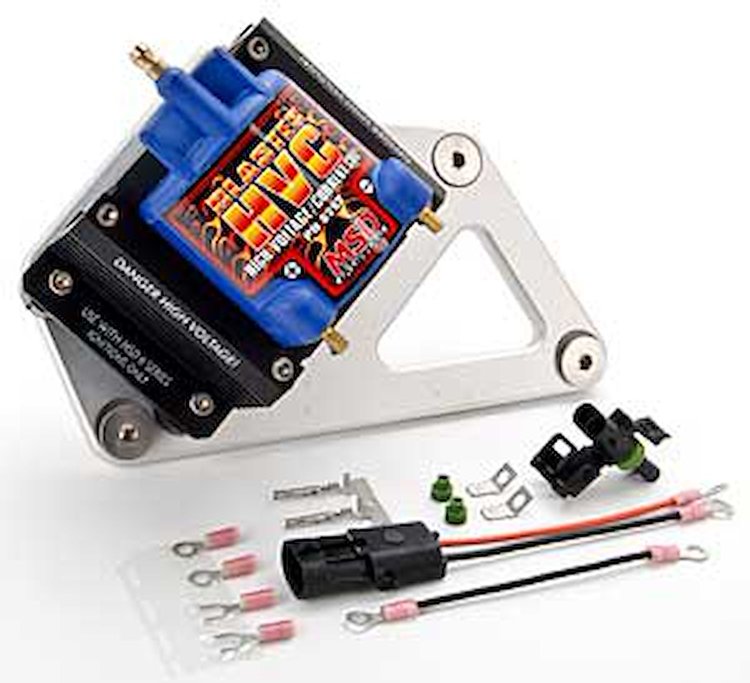

Blaster HVC Coil Kit
• Big Block Chevy
  Includes:
• Coil
• Head Mount Bracket

  The Blaster HVC is designed for high rpm, long duration applications such as road course and circle track racing using an MSD 6-Series Ignition.
  Coil Specs:
• Turns ratio: 100:1
• Primary resistance: .02 OHMs
• Secondary resistance: 1.38K OHMs
• Inductance: 7 mH
• Maximum voltage: 42,000 Volts (Tested with 6AL Ignition)
• Peak current: 300 mA
• Spark duration: 200 uS
  Features:
• Designed for high rpm, long duration applications
• Works with electronic ignitions and MSD Ignition Controls (ballast resistor required for points systems)
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in blue epoxy and secured with extruded brackets
• Spark plug style terminal and threaded brass primary studs
• Supplied with rubber shock mounts
• 50-State Legal
• CARB Legal per E.O. D-40-37

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
