Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-82558
Blaster Coils 2005-2014 Dodge/Chrysler Hemi
$53895$599.95You Save$61.00
2 left in stock
Ships Tomorrow
Lowest Price Guarantee
Chrysler/Dodge

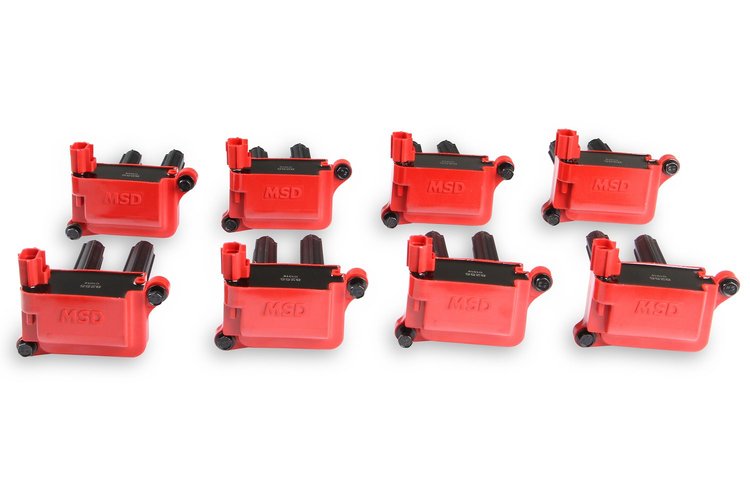

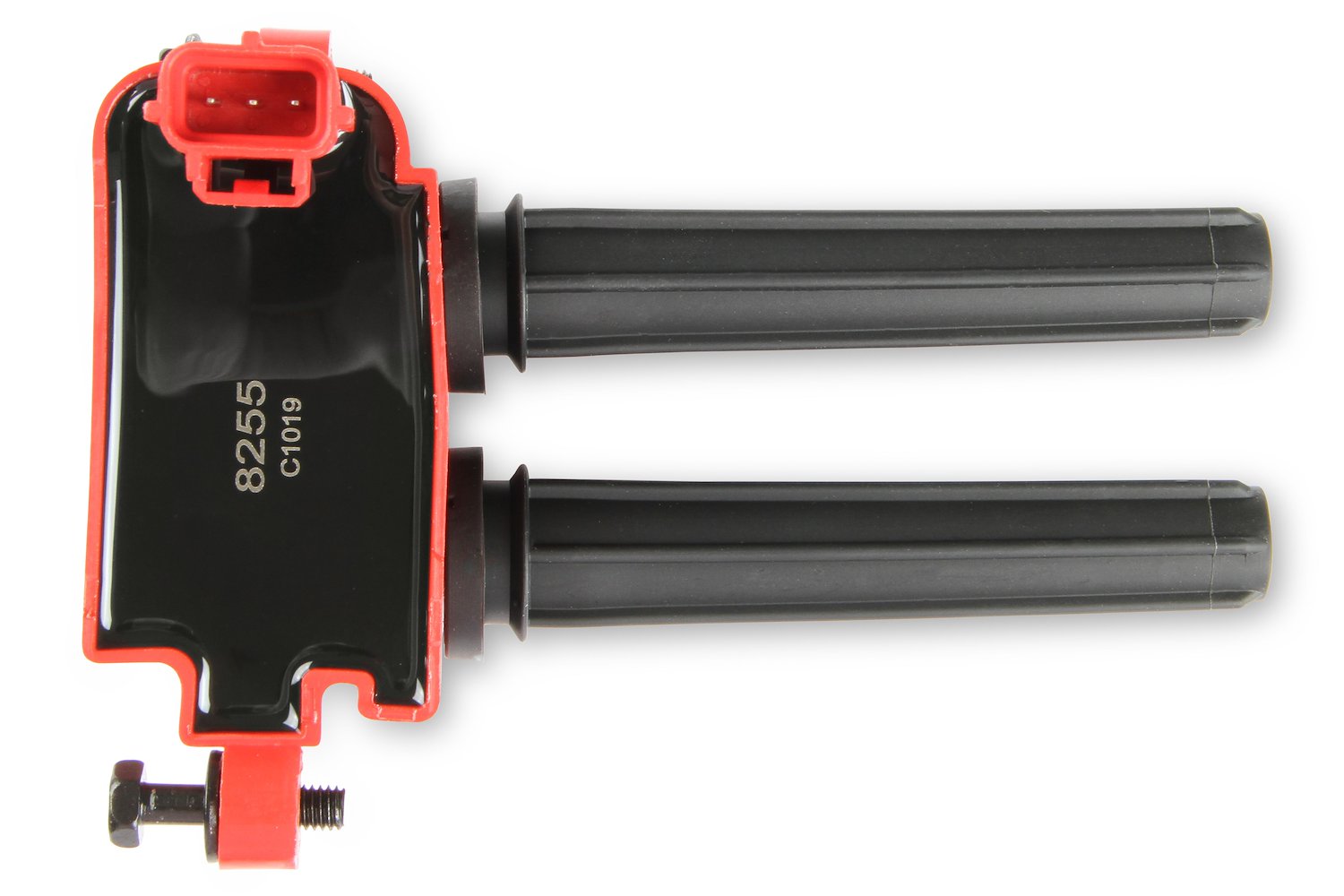

Blaster Coils2005-2014 Dodge/Chrysler Hemi Red 8/pkg
Improved high rpm operation Patented winding design and materials Direct bolt-in to factory connectors Secondary Current (mA): 56 mA
Specs at 14 Volts
- Turns Ratio: 80 to 1
- Primary Resistance: 55 ohms
- Secondary Resistance: 14.5K ohms
- Inductance: 3.2 mH
- Secondary Current: 56 mA
- Spark duration (mS): 1320us
- Energy: 55 mJ
- Maximum Voltage: 34KV
Part TypeIgnition Coil
BrandMSD IGNITION
Package Height4.1
Package Width12.2
Package Length17.5
Weight9.3 PG
Part CategoryPerformance Parts
Carb Eo NumberD-40-42 (pdf)
Primary Resistance0.550 ohms
Coil Wire AttachmentMale/HEI
Coil StyleCoil pack
QuantitySold as a set of 8
Ballast Resistor IncludedNo
Maximum Voltage34,000 V
Turns Ratio80:01:00
Peak Current56 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.2 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration1,320 uS
Secondary Resistance14.5K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part Number82558
Package Qty1
Package TypeEA
