Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler/Dodge

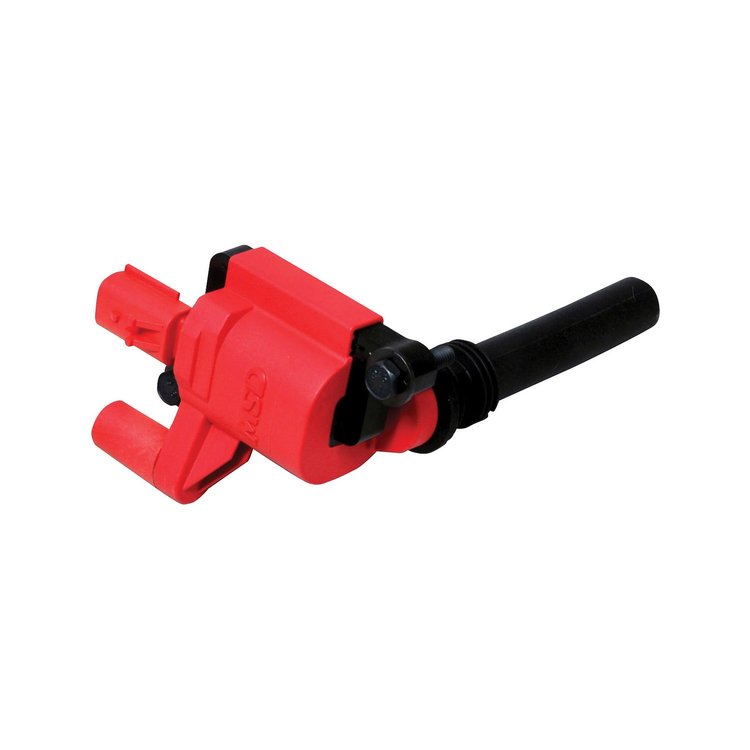

- Blaster Coil
- 2003-2005 Dodge/Chrysler Hemi
- Red
- 1/pkg
Specs at 14 Volts - Turns Ratio: 63 to 1
- Primary Resistance: .6 ohms
- Secondary Resistance: 7.2K ohms
- Inductance: 3.6 mH
- Secondary Current: 72 mA
- Spark Duration (mS): 1150 us
- Energy: 62 mJ
- Maximum Voltage: 35KV
- Improved high rpm operation
- Patented winding design and materials
- Direct bolt-in to factory connectors
- Turns Ratio: 63.1
- Primary Resistance: .6 OHMS
- Secondary Resistance: 5.56K OHMS
- Inductance: 4.2 mH
Part TypeIgnition Coil
BrandMSD IGNITION
Package Height3.0
Package Width6.1
Package Length8.7
Weight0.84 PG
Part CategoryPerformance Parts
Carb Eo NumberD-40-42 (pdf)
Primary Resistance0.600 ohms
Coil Wire AttachmentMale/HEI
Coil StyleCoil pack
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage35,000 V
Turns Ratio63:01:00
Peak Current72 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.6 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration1,150 uS
Secondary Resistance7.2K ohms
Part FitmentDirect Fit
Coil Internal ConstructionEpoxy
Vendor Part Number8256
Package Qty1
Package TypeEA
