Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-82568

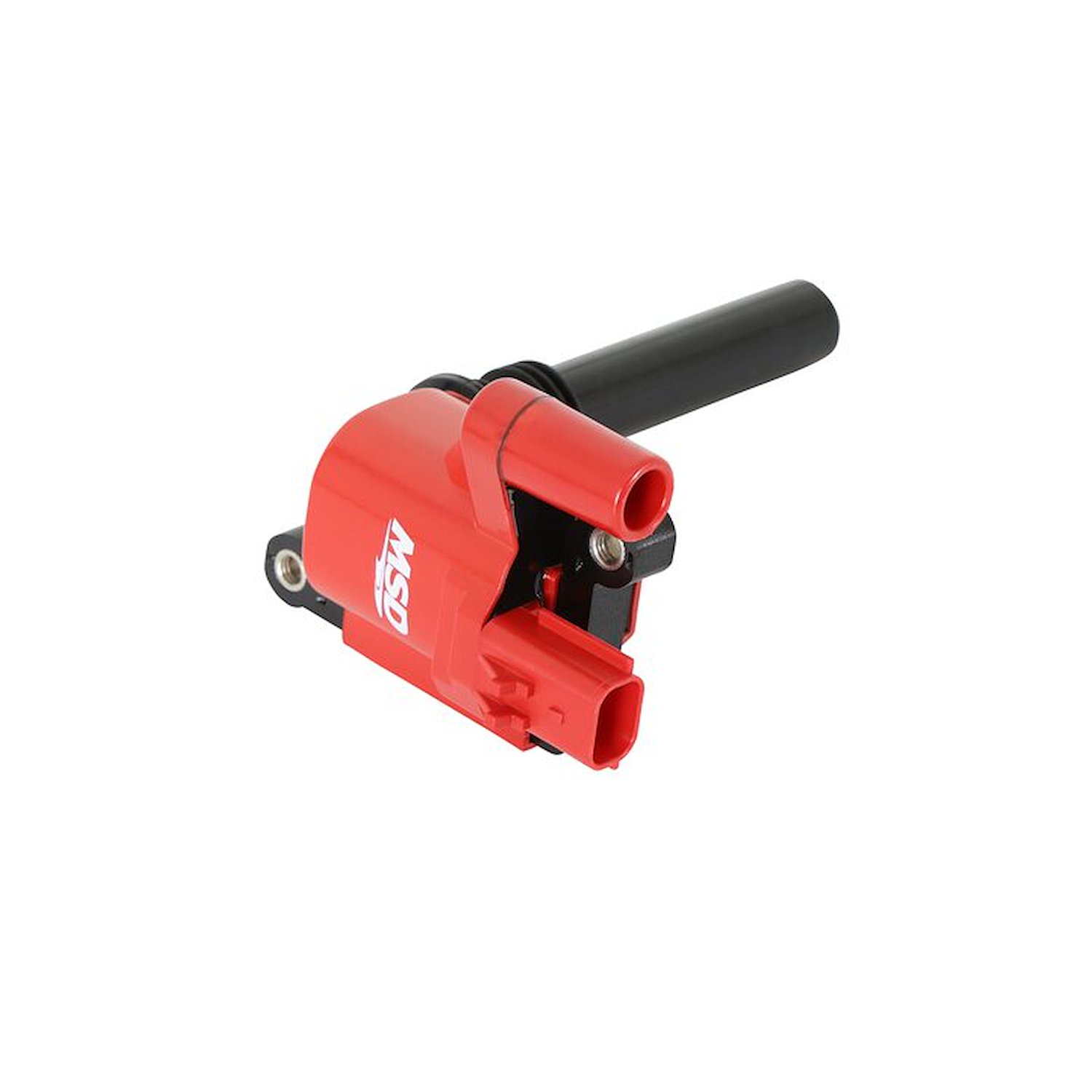

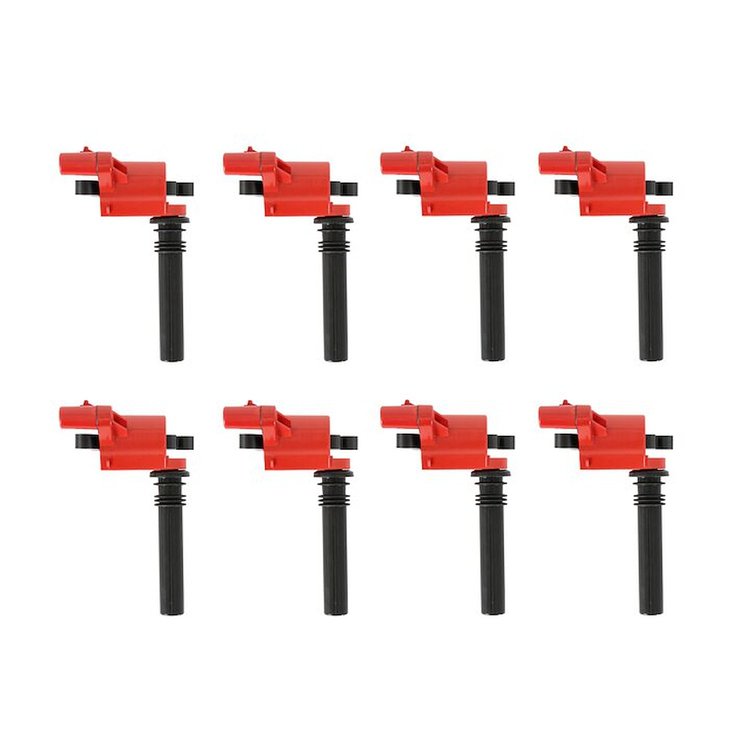

Blaster Coils 2003-2005 Dodge/Chrysler Hemi
$49995
1 left in stock
Ships Today
Lowest Price GuaranteeItems You Need
Chrysler/Dodge
- Blaster Coils
- 2003-2005 Dodge/Chrysler Hemi
- Red
- 8/pkg
Specs at 14 Volts - Turns Ratio: 63 to 1
- Primary Resistance: .6 ohms
- Secondary Resistance: 7.2K ohms
- Inductance: 3.6 mH
- Secondary Current: 72 mA
- Spark Duration (mS): 1150 us
- Energy: 62 mJ
- Maximum Voltage: 35KV
- Improved high rpm operation
- Patented winding design and materials
- Direct bolt-in to factory connectors
- Secondary Current (mA): 72 mA
Get the Most Out of Your Ignition System
MSD Blaster Coils for Mopar applications maintain factory fit with simple bolt-in installation and increase performance with extra coil windings for more power and more thorough combustion even at higher RPMs. They are legal for use on Emissions Controlled Vehicles when used as a direct replacement because they are a direct or consolidated replacement part. Sold each or in sets.
Part TypeIgnition Coil
Product LineMSD Blaster Coils for Mopar/Jeep
BrandMSD IGNITION
Package Height3.4
Package Width10.3
Package Length14.5
Weight6.86 PG
Part CategoryPerformance Parts
Carb Eo NumberD-40-42 (pdf)
Primary Resistance0.600 ohms
Coil Wire AttachmentMale/HEI
Coil StyleCoil pack
QuantitySold as a set of 8
Ballast Resistor IncludedNo
Maximum Voltage35,000 V
Turns Ratio63:01:00
Peak Current72 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.6 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration1,150 uS
Secondary Resistance7.2K ohms
Part FitmentDirect Fit
Coil Internal ConstructionEpoxy
Vendor Part Number82568
Package Qty1
Package TypeEA
