Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Adjustable Timing Controls

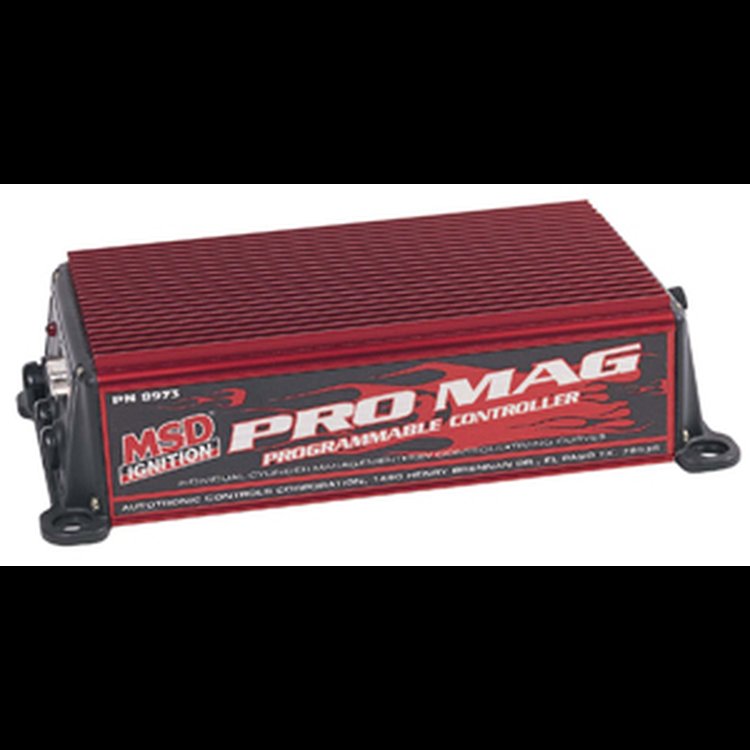

- Programmable Pro Mag Controller
- Individual cylinder management allows up to 10° of retard per cylinder
- Plot a time based retard curve in 0.05 second intervals and 0.1° increments
- Program an ignition curve in relation to boost pressure up to 75 psi
- Activate and deactivate a circuit by engine boost pressure,rpm or in time down to 0.1 second
- Program a timing curve down to 0.1° per 100 rpm increments up to 12,500 rpm
- Set different rpm shift points for each gear shift and retard for each gear
- Select a timing curve for use on the holeshot to improve traction
- Square wave tachometer output signal for acquisition equipment
- Set three different stages of retard for independent activation
- View the timing curves and retards in real time
- Plotted rpm/timing chart for the entire run and the launch curve
- Run the engine or trigger the controller with an MSD tester, and view the timing curve through the rpm range
- Download and store programs with accompanying notes to review or save for similar situations
- Program curves that you would like to test then upload them at the track
- Print out the curves and specifiactions of the entire program
Part TypeIgnition Kit
BrandMSD IGNITION
Package Height4.4
Package Width6.4
Package Length10.2
Weight3.95 PG
Part CategoryPerformance Parts
Controller ActivationProgrammable
Controls Ignition AdvanceYes
Ignition Box RequiredNo
QuantitySold individually
Part FitmentSemi Universal
Compatible With Multiple Coil IgnitionsNo
CircuitryDigital
Controls Ignition RetardYes
AdjustableYes
Adjustment StylePC
Vendor Part Number8973
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
