Made in USA
Sport Compact EFI Stage One Nitrous System Single Nozzle
Product Discontinued
NITROUS EXPRESSPART NUMBER: 744-20923-00

Sport Compact EFI Stage One Nitrous System Single Nozzle

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Sport Compact EFI Stage One Nitrous Systems
  • 35-75 HP
    • Sport Compact EFI Stage One Nitrous System
    • Single Nozzle
    • 35, 50, 75 WHP
    • Bottle Not Included

    Nozzle Mounts Into the Air Intake Tube!
    35 to 400 WHP

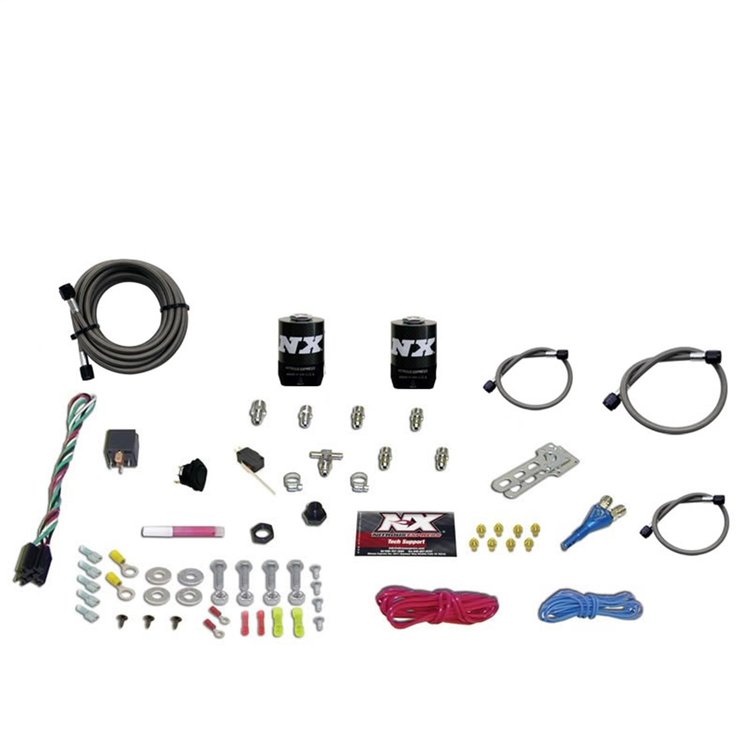

    NX Single/Dual Nozzle Systems are the most versatile EFI power boosters on the market. These systems include an NX nitrous nozzle which mounts in the air inlet before the throttle body. These systems include billet aluminum and carbon fiber Lightning series solenoids, stainless braided nozzle lines, 15-foot stainless braided nitrous feed line, wide open throttle switch, master arming switch, 40-amp relay, relay harness as well as every nut, bolt and electrical connectors needed to perform the install. Systems with bottles include stainless steel bottle brackets and a high flow 'Lightning 45' bottle valve.

    Show More

    Nitrous Express innovates and leads the off-the-shelf nitrous system market! Their systems include the latest technology, designs and the best components available such as the NX Lightning nitrous & fuel solenoids. These solenoids feature an improved flow path that eliminates sharp turns and expansion areas in the nitrous flow path. This keeps the nitrous in dense liquid form which makes more power utilizing less nitrous. Lightning nitrous solenoids feature an integrated purge port which allows you to connect a purge valve directly to the body of the nitrous solenoid for clean looks and less plumbing. Lightning Series solenoids feature CNC aluminum bodies topped with Carbon Fiber cans for the ultimate in weight savings. This kit also includes a Nitrous Express bottle which features the legendary 'Lightning 45' bottle valve. This bottle valve features a large .325'' orifice with a direct flow path and ONLY one 45-degree turn to the outlet and a consistent inner diameter which provides outstanding laminar flow and eliminates any chance of those power robbing gaseous bubbles from developing. The 'Lightning 45' valve also features a built-in gauge port, a high flow push port and weighs less than old school brass bottle valves.

    Features:

    • Lightning 45 bottle valve
    • Lightning solenoids
    • Patented Shark nozzle
    • EFI nozzle adapter
    • Fuel line adapter may be required
    • Includes jetting
    • Single or dual nozzle system
    • Made In The USA!
    Single Nozzle Stage One System - 35 to 150HP
    Includes jetting for 35, 50, 75, 100, 125 & 150 horsepower and can be upgraded to support up to 250 horsepower by adding a SHO nozzle line (p/n 744-10124) and a -04AN solenoid fitting (p/n 744-16109).

    Single Nozzle Race System - 100 to 250HP
    Includes jetting for 100, 150, 200 & 250 horsepower and can support the 250HP right out of the box, no additional components required.

    Dual Nozzle System - 35 to 300HP
    Includes jetting for 35, 50, 75, 100 & 150 horsepower (per nozzle) and can support up to 300HP right out of the box, no additional components required.

    Single Nozzle Shark SHO System - 100 to 400HP
    Designed for EFI racers with single nozzle limitations. The SHO has the highest horsepower output of any single nozzle nitrous system available. The SHO nozzle utilizes a .116 internal N2O passage that can produce up to 400 wheel horsepower. Includes jetting for 100, 200, 300 & 400 horsepower and can support the 400HP right out of the box, no additional components required.



    *Click Here to see why NX Lightning 45 Bottle Valve, NX DF5 Bottle Valve and NX Lightning Solenoid outperforms the competition!



    Part TypeNitrous System
    Product LineNitrous Express EFI Single/Dual Nozzle Nitrous Systems
    BrandNITROUS EXPRESS
    Package Height6.0
    Package Width12.0
    Package Length24.0
    Weight6.0 PG
    Part CategoryPerformance Parts
    UsageStreet/Performance
    TypeUniversal
    BottleWithout Bottle
    Part FitmentSemi Universal
    Vendor Part Number20923-00
    Package Qty1
    Package TypeEA
