Nitrous Outlet 00-45900-DRY1-12 Features:

• Continuing Innovation: The main drawback to a nitrous plate has so far been the inability to tune for individual cylinders. Enter The Kraken! It is jetted at the cone to allow the ultimate tuneability and designed to work with 4500 flange intake manifolds with a plenum depth greater than 4 in

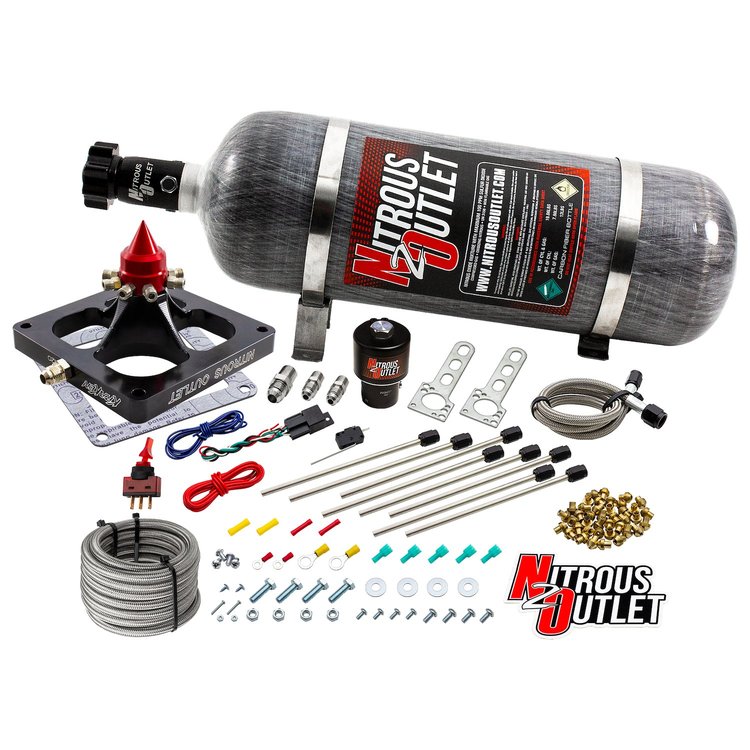

• Design: The Kraken is a single-entry nitrous plate that provides a max flow of 810hp (2916pph) with the included .178 in. Nitrous Solenoid. The nitrous jet fittings are secured in the cone with thread sealer - they are not coming out!. The Kraken is not available in 4150 combinations as the 4150 plenums are not large enough to fit the Kraken Nitrous Plate
• Construction: The 4500 plate and cone are manufactured from 6061 billet aluminum. The nitrous plate is 3/4 thick and black anodized with engraved Nitrous Outlet and Kraken logos and N2O entry marking. The cone is anodized red and features 8 nitrous discharge holes. Premium gaskets are included as well as Jetting for 100-150-200-250-300-350-400-450-500-550-600-650-700-750-800 horsepower shots. This is a Race system and utilizes a .178 in. nitrous solenoid specially modified for the Kraken Nitrous Kit. Braided stainless hose is included to connect the solenoid to the plate, as is a universal solenoid bracket
• Application: We include eight 6 in. pieces of hardline flared on one end that have the needed B-Nut and sleeve. These hardlines will have to be cut and bent to fit your particular intake manifold. If you are uncomfortable completing the plumbing or simply want a turnkey solution, we offer our plumbing service! Simply call 254-848-4300 or email [email protected] and one of our techs will get you an estimate

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
